Name: Thermal Silicone Insulation Pad For Gpu Cpu Cooling Pad 0.5MM-5.0MM With Naturally Tacky Needing No Further Adhesive Coating
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-10-01U Series
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

Thermal Silicone Insulation Pad For Gpu Cpu Cooling Pad 0.5MM-5.0MM With Naturally Tacky Needing No Further Adhesive Coating

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF100-10-01U Series
Document:	TIF100-10-01U_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Thermal Silicone Insulation Pad For Gpu Cpu Cooling Pad 0.5MM-5.0MM With Naturally Tacky Needing No Further Adhesive Coating	Keywords:	Thermal Silicone Insulation Pad
Thinkness Range:	0.010"(0.25mm)~0.200" (5.0mm)	Sample:	Sample Avaliable
Flam Rating:	94 V0	Hardness:	65/27 Shore 00
Thermal Conductivity:	1.0W/mK	Color:	Black
Certification:	RoHS And UL Recognized
Highlight:	silicone thermal pad for GPU , self-adhesive CPU cooling pad , 0.5mm thermal insulation pad

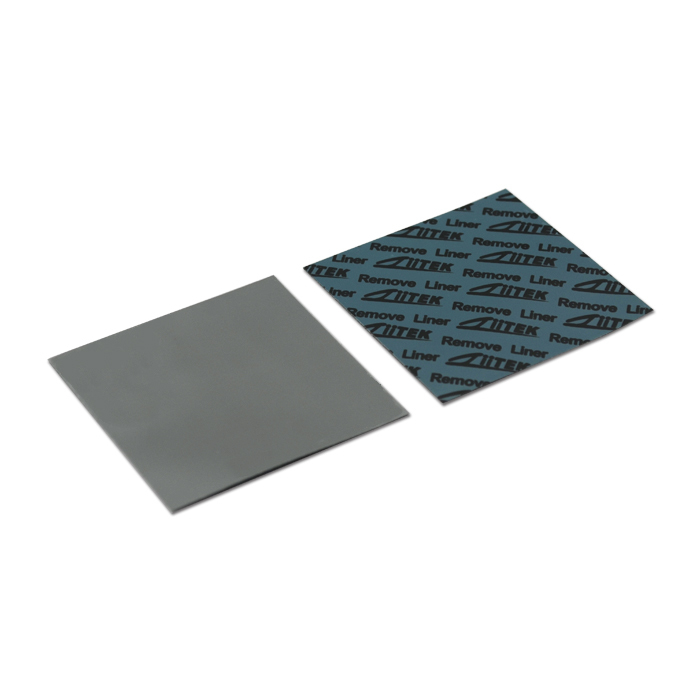

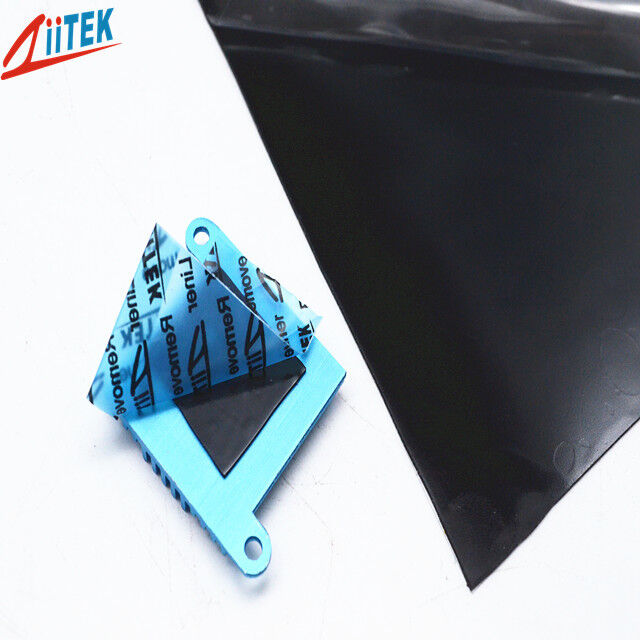

Thermal Silicone Insulation Pad For GPU CPU Cooling Pad 0.5MM-5.0MM

Product Overview

TIF®100-10-01U Series thermal silicone insulation pads are designed for efficient gap heat transfer, filling gaps between heating and cooling components while providing insulation, damping, and sealing functions. These naturally tacky pads require no additional adhesive coating.

Key Features

Excellent thermal conductivity: 1.0 W/mK
Soft and compressible for low stress applications
Naturally tacky - no additional adhesive required
Available in various thicknesses and hardness levels
Moldable for complex parts
Outstanding thermal performance

Applications

Cooling components to chassis or frame
High speed mass storage drives
LED TV and LED-lit lamps
RDRAM memory modules
Micro heat pipe thermal solutions

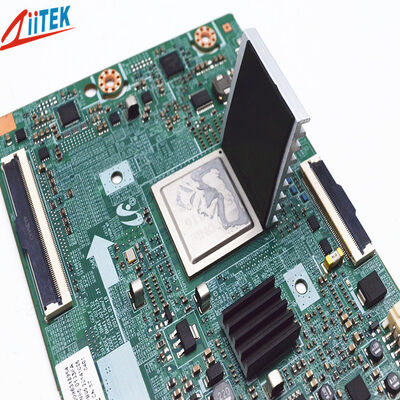

Display cards and motherboards
Notebook computers and power supplies
Telecommunication hardware
Memory modules

Technical Specifications

Property	Value	Test Method
Color	Black	Visual
Construction & Composition	Ceramic filled silicone elastomer	-
Density (g/cm³)	2.0	ASTM D792
Thickness Range	0.010"~0.020" \| 0.030"~0.200" 0.25~0.50mm \| 0.75~5.0mm	ASTM D374
Hardness (Shore 00)	65 \| 27	ASTM 2240
Operating Temperature	-40 to 200℃	-
Breakdown Voltage (V/mm)	≥5500	ASTM D149
Dielectric Constant @ 1MHz	4.5	ASTM D150
Volume Resistivity	＞1.0×10¹² Ohm-meter	ASTM D257
Flame Rating	V-0	UL 94 (E331100)
Thermal Conductivity	1.0 W/m-K	ASTM D5470 / ISO22007

Product Dimensions

Standard Thickness: 0.010" (0.25 mm) ~ 0.200" (5.00 mm) with 0.010" (0.25 mm) increments

Standard Size: 16" × 16" (406 mm × 406 mm)

Packaging & Lead Time

Packaging: Protected with PET film or foam, paper card separation between layers, export carton packaging, customizable to customer requirements.

Lead Time: For quantities of 5000 pieces, delivery time is negotiable.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer based in China.

Do you accept custom orders?

Yes, we welcome custom orders. We can customize dimensions, shapes, colors, and apply adhesive coatings or fiberglass reinforcement as required. Please provide drawings or detailed specifications.

How much do the pads cost?

Pricing depends on size, thickness, quantity, and specific requirements such as adhesive applications. Please provide these details for an exact quote.

Our Services

• 12-hour online service with fast inquiry response

• Business hours: 8:00 AM - 5:30 PM, Monday to Saturday (UTC+8)

• Experienced English-speaking support staff

• Standard export packaging or customized marking

• Free samples available

• Comprehensive after-sales support and problem resolution
