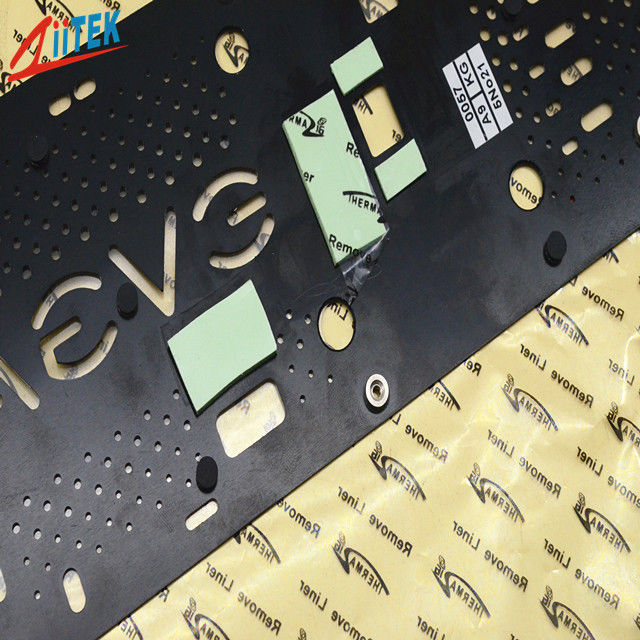

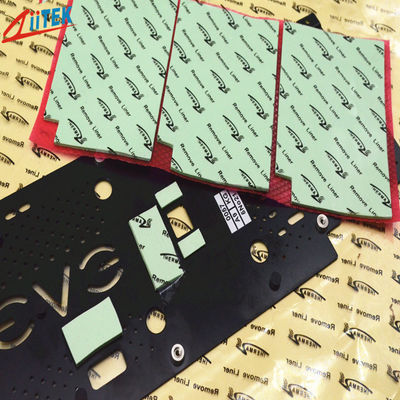

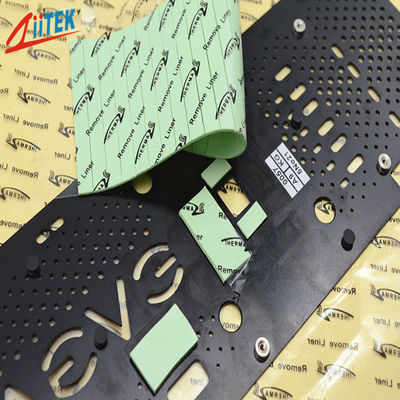

High Performance RoHS Compliant Ideal Gap Filler 1.5W/MK Silicone Thermal Gap Pad For AI Processors AI Servers

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF120-07S Series
Document:	TIF100-07S_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Product Name:	High Performance RoHS Compliant Ideal Gap Filler 1.5W/MK Silicone Thermal Gap Pad For AI Processors AI Servers	Thickness:	0.5mmT
Density:	2.2g/cm³	Breakdown Voltage（V/mm）:	≥5500
Thermal Conductivity:	1.5W/m-K	Color:	Green
Keywords:	Silicone Thermal Gap Pad	Hardness:	45/65 Shore 00
Sample:	Sample Free	Application:	AI Processors AI Servers Heat Transfer
Highlight:	Silicone Rubber Thermal Gap Pad , 1.5W/MK Thermal Gap Pad , Silicone Rubber Silicone Thermal Pad

High Performance RoHS Compliant Ideal Gap Filler 1.5W/MK Silicone Thermal Gap Pad For AI Processors & AI Servers

Product Overview

The TIF® 120-07S Series thermal silicone pad is a high-performance, economical solution featuring low oil permeability, low thermal resistance, high softness, and excellent compliance. Designed to operate stably at -40℃ to 200℃ while meeting UL94V0 requirements.

Key Features

Excellent thermal conductivity: 1.5W/mK
Available in various thickness options
Electrically isolating properties
Broad range of hardness options available
High tack surface reduces contact resistance
Easy release construction

Applications

LED TV / LED Lighting Systems
Heat pipe thermal solutions
Mass storage devices
Automotive electronics
Memory Modules
Routers and networking equipment
Telecommunication hardware
Motherboards and mainboards
IT infrastructure
GPS navigation and portable devices

Technical Specifications

Property	Value	Test Method
Color	Green	Visual
Construction & Composition	Ceramic filled silicone elastomer	******
Density (g/cm³)	2.2	ASTM D792
Thickness Range (inch/mm)	0.010~0.020 \| 0.030~0.200 0.25~0.50 \| 0.75~5.0	ASTM D374
Hardness (Shore 00)	65 \| 45	ASTM 2240
Recommended Operating Temperature	-40 to 200℃	******
Breakdown Voltage (V/mm)	≥5500	ASTM D149
Dielectric Constant @ 1MHz	4.5	ASTM D150
Volume Resistivity	＞1.0×10¹² Ohm-meter	ASTM D257
Flame Rating	V-0	UL 94 (E331100)
Thermal Conductivity	1.5 W/m-K	ASTM D5470 / ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm) to 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm×406 mm)

Component Codes

Reinforcement Fabric: FG (Fiberglass)

Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Available Options

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)

Product Sizes: 8" x 16" (203mm x 406mm)

Individually cut shapes and custom thicknesses can be supplied. Please contact us for confirmation.

Pressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix

Request adhesive on double side with "A2" suffix

Reinforcement: TIF series sheets can be supplied with fiberglass reinforcement.

Company Profile

Ziitek maintains an independent R&D team with extensive experience in thermal conductive materials. Our well-equipped testing facilities allow us to conduct comprehensive testing with customer samples to identify the most suitable Ziitek materials for each application.
