Name: Thermally Conductive And Electrically Conductive Silicone Thermal Pad For LED Lighting
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIS300-45
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

Thermally Conductive And Electrically Conductive Silicone Thermal Pad For LED Lighting

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIS300-45

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	242312cm cantons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Thermally Conductive And Electrically Conductive Silicone Thermal Pad For LED Lighting	Thickness Range:	0.50~5.0mm(0.020~0.20inch)
Color:	Dark Gray	Hardness:	70 Shore 00
Density:	2.4g/cm³	Keywords:	Electrically Conductive Silicone Pad
Application:	LED Lighting

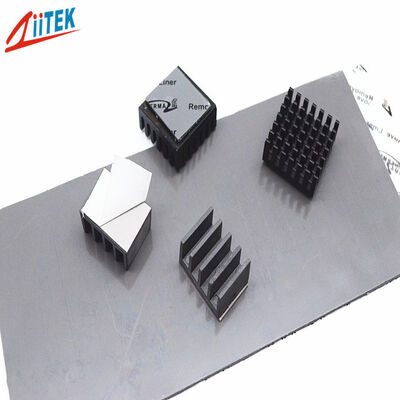

Thermally Conductive And Electrically Conductive Silicone Thermal Pad For LED Lighting

Products Description

TIS^®300-45 Series is a nickel/graphite-filled conductive and thermally conductive silicone sheet, specially developed for thermal management and electromagnetic interference suppression of 3C electronic products, high-frequency signal devices, and precision electromagnetic components. It features excellent thermal conductivity and surface resistivity, while providing high compressibility and soft elasticity, making it suitable for low pressure installation environments. The TIS^®300-45 series material is resistant to corrosion caused by leakage current and maintains its stability under harsh conditions.

Features:

> High thermal conductivity
> Surface resistivity (Ohm-cm) :< 1.0× 10³
> Good corrosion resistance
> High compressibility,soft yet elastic, suitable for low-stress applications

Applications:

> LED lighting
> Noise suppression for 3C products
> Absorption of high-order harmonic interference in RAM
> Improvement of Wifi signal
> Error rate in signal mode switching of mobile phones and other devices
> Noise suppression of electromagnetic components in FPC,IC,and other electronic devices, such as laptops, tablets,etc.

Typical Properties of TIS^®300-45 Series
Color	Dark gray	Visual
Construction	Graphite nickel-plated filled silicone rubber	******
Density	2.4 g /cm³	ASTM D792
Hardness	70 Shore 00	ASTM 2240
Thickness Range(inch/mm)	0.020~0.200(0.50~5.0)	ASTM D374
Recommended Operating Temp	-40 to 200℃	******
Surface Resistivity(Ohm.cm)	＜1.0x10³	ASTM D257
Flame Rating	V-0	UL 94 (E331100)
Thermal conductivity	4.5 W/m-K	ASTM D5470

Product Specifications

Standard Thickness: 0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 10"× 16" (254 mm×406 mm)

The TIS^®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Thermally Conductive And Electrically Conductive Silicone Thermal Pad For LED Lighting 0

Company Profile

With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Factory Size:8000~10,000 square meters

Factory Country/Region:No.12, Xiju Road, Hengli Township, Dongguan City, Guangdong Province, P.R.China

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
