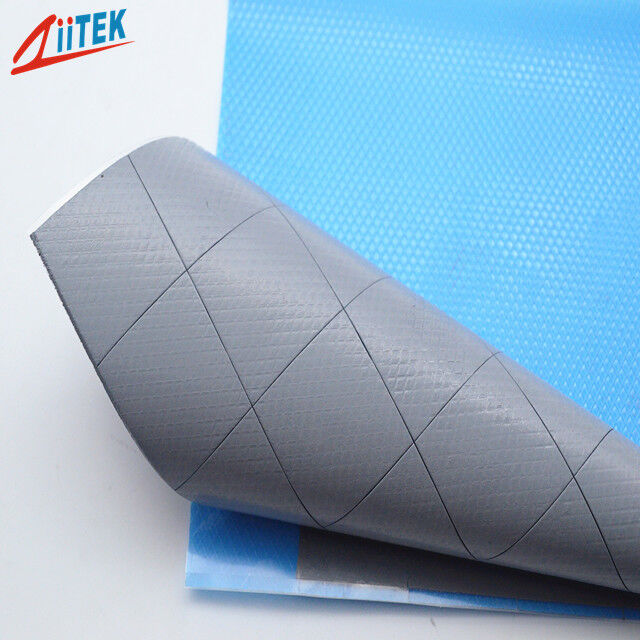

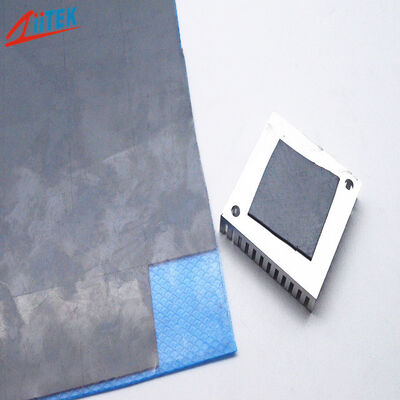

AI Processors AI Servers Thermal Pad With Thermal Conductivity Of 16.0W/mK For Electronics Cooling And Heat Dissipation

AI Processors AI Servers Thermal Pad With Thermal Conductivity Of 16.0W/mK For Electronics Cooling And Heat Dissipation

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL and RoHs
Model Number: TIF800TS
Document: TIF800TS_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Products Name: AI Processors AI Servers Thermal Pad With Thermal Conductivity Of 16.0W/mK For Electronics Cooling And Heat Dissipation Thermal Conductive: 16.0W/mK
Hardness: 45 Shore 00 Sample: Free Sample
Color: Gray Thickness: 0.030"~0.200"/(0.75~5.0mm)
Density: 3.3g/cm³ Keywords: AI Servers Thermal Pad
Construction: Ceramic Filled Silicone Elastomer Application: AI Processors AI Servers Electronics Cooling And Heat Dissipation

AI Processors AI Servers Thermal Pad With Thermal Conductivity Of 16.0W/mK For Electronics Cooling And Heat Dissipation

Products description


The TIF®800TS Series is a high-end compressible thermal pad that meets top-level cooling requirements while also ensuring excellent assembly workability. Through an innovative material formulation, it successfully achieves an ideal combination of ultra-high thermal conductivity and moderate hardness. This unique performance balance allows it to efficiently handle the cooling challenges posed by extremely high heat fluxes, while also possessing good mechanical _strength and compressibility, making it easy, to manufacture and install. It provides a thermal interface material solution with both outstanding heat dissipation performance and high reliability for high-power-density electronic devices.


Features

> Good thermal conductive 16.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses

Applications

> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

Key attributes


Typical Properties of TIF®800TS Series
Property Value Test method
Color Gray Visual
Construction Ceramic filled silicone elastomer ******
Density(g/cm³) 3.3 ASTM D792
Thickness Range(inch/mm) 0.030 0.040~0.200 ASTM D374
0.75 (1.00~5.00)
Hardness (Shore 00) 45 45 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 16.0W/m-K ISO22007



Product Specifications


Standard Thickness: 0.030" (0.75 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mm ×406 mm)


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

AI Processors AI Servers Thermal Pad With Thermal Conductivity Of 16.0W/mK For Electronics Cooling And Heat Dissipation 0


Packaging Details & Lead time


The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized


Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
