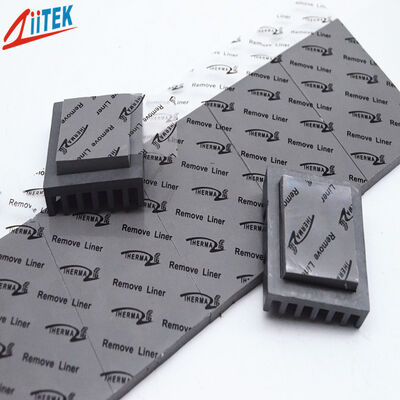

Name: Die Cut Thermal Pad Silicone Conductive Heatsink Cooler Pads 2.0W/mk Self-adhesive Ceramic Filled Silicone Elastomer
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-20-11E
Price: 4.10 USD
Availability: InStock

Home Products CPU Thermal Pad

Die Cut Thermal Pad Silicone Conductive Heatsink Cooler Pads 2.0W/mk Self-adhesive Ceramic Filled Silicone Elastomer

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF100-20-11E
Document:	TIF100-20-11E_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Name:	Die Cut Thermal Pad Silicone Conductive Heatsink Cooler Pads 2.0W/mk Self-adhesive Thermal Cooling Pad	Hardness:	65/35 Shore 00
Keywords:	Thermal Pad	Color:	Dark Gray
Thermal Conductivity:	2.0W/mK	Construction:	Ceramic Filled Silicone Elastomer
Thickness:	0.25~5.0mm	Sample:	Free
Application:	Electronic Components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Netcom, Panel, Power Electronics, Robot, Servers, Smart Hom
Highlight:	silicone thermal pad 2.0W/mk , self-adhesive CPU thermal pad , die cut heatsink cooling pad

Die Cut Thermal Pad Silicone Conductive Heatsink Cooler Pads 2.0W/mk Self-adhesive Thermal Cooling Pad

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Products description

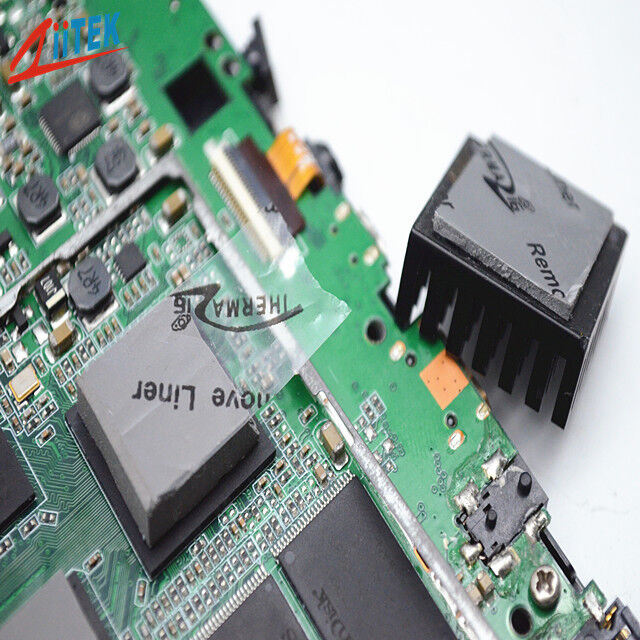

TIF^®100-20-11E thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

Features

> High thermal conductivity
> Extremely soft,low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

> RoHS compliant
> UL recognized

Applications

> RDRAM memory modules

> Micro heat pipe thermal solutions

> Automotive engine control units

> Automotive electronics

> Set top boxes

> Audio and video components

> IT infrastructure

> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)

Typical Properties of TIF^®100-20-11E Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.55		ASTM D792
Thickness Range(inch/mm)	0.010~0.020 0.25~0.50	0.030~0.200 0.75~5.00	ASTM D374
Hardness (Shore 00)	65	35	ASTM 224
Recommended Operating Temperature (°C)	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant @1MHz	5.0		ASTM D150
Volume Resistivity	＞1.0X10¹²Ohm-meter		ASTM D257
Thermal Conductivity (W/m-K)	2.0		ASTM D5470
	2.0		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2(Single-sided/Double-sided adhesive).

The TIF^®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Die Cut Thermal Pad Silicone Conductive Heatsink Cooler Pads 2.0W/mk Self-adhesive Ceramic Filled Silicone Elastomer 0

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.

FAQ:

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Do you accept custom orders ?
