More Lighter Than Aluminum Thermal Heat Conductive Plastic For LED Housing Design

More Lighter Than Aluminum Thermal Heat Conductive Plastic For LED Housing Design

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHS
Model Number: TCP300PS-09-02A
Payment & Shipping Terms:
Minimum Order Quantity: 10kg
Price: USD 0.1-10/kg
Packaging Details: 25kg/bag
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000pcs/month
Contact Now
Detailed Product Description
Products Name: More Lighter Than Aluminum Thermal Heat Conductive Plastic For LED Housing Design Keyword: Thermal Plastic
Application: AD-DC Power Adapters Shrinkage: 0.3~0.6%
Flame Retardency: UL94 V-0 Color: Black
Specific Gravity: 1.7g/cm3 Materail: Nylon
Highlight:

conductive plastic material

,

conductive thermoplastic

,

LED Lit Lamps Heat Conductive Plastic

More Lighter Than Aluminum Thermal Heat Conductive Plastic For LED Housing Design



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

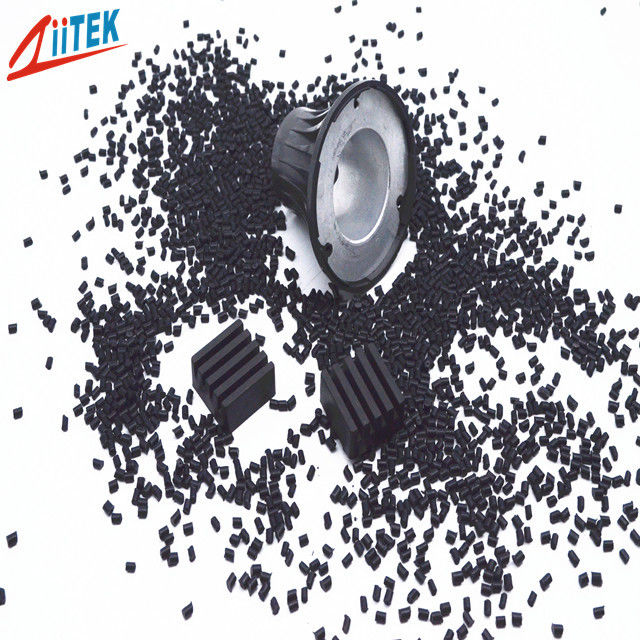

TCP™300PS-09-02A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.


More Lighter Than Aluminum Thermal Heat Conductive Plastic For LED Housing Design 0



TCP300PS-09-02A Thermally Conductive plastic.pdf



Application


TCP™300PS-09-02A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.


Features


> Good thermal conductivity: 0.9W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting
> Excellent flexibility in designing final products such as housings.
> UL94 V-0.


Typical Properties of TCPTM300PS-09-02A
Items Test method Unit Typical data
Physical Properties
Material ***** ***** Nylon
Color Visual ***** black
Melt index GB/T 3682-2000 g/10min 64.85
Specific Gravity GB/T 1033.1-2008 g/cm³ 1.7
Shrinkage GB/T 17037.4-2003 % 0.3~0.6
Mechanical Properties
Tensile Strength GB/T 1040.2-2006 MPa 33.9
Flexural Strength GB/T 9341-2008 MPa 41.9
Flexural Modulus GB/T 9341-2008 MPa 9500
Impact Strength, notched GB/T 1843-2008 kJ/㎡ 40
Electrical Properties
Dielectric Breakdown Voltage ASTM D149 VAC >10000
Dielectric Constant, 1MHz ASTM D150 ***** 4.5
Volume Resistivity ASTM D257 Ohm-meter 7.0*10¹²
Thermal Properties
Heat Deflection Temperature ASTM D648 170
Thermal Conductivity Throngh Plane ASTM E1461 W/m-K 0.9
Flame retardancy Min. thick. 1.0mm Class V-0



lnjection Parameters of Recommends
TCP300PS-09-02A Injection parameters Value Range
Barrel Zone Temperature One sect / ℃ 250-280°C
Two sect / ℃ 260-290°C
Three sect / ℃ 250-270°C
Mouth Temperature / ℃  270-290°C
Melt Temperature / ℃  250-280°C
Bake Temperature / ℃  100~120°C 4H
Mould Temperature / ℃  According to the machine tonnage
Injection Pressure / Bar  According to the machine tonnage
Injection Speed / mm/s  Mediun spssd
Remarks:
Data from the laboratory of the Division I (1) above are for reference only, not as a product standard reference.
(2)The typical processing conditions according to different models, different mold and product requirements to make the appropriate adjustments.

More Lighter Than Aluminum Thermal Heat Conductive Plastic For LED Housing Design 1


FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
