Place of Origin: | China |
Brand Name: | Ziitek |
Certification: | RoHS |
Model Number: | TCP200-15-02A |
Minimum Order Quantity: | 10kg |
---|---|
Price: | USD 0.1-10/kg |
Packaging Details: | 25kg/bag |
Delivery Time: | 3-5 work days |
Payment Terms: | T/T |
Supply Ability: | 1000000pcs/month |
Products Nam: | Black Nylon Heat Conductive Plastic 1.8W Flexible Moulding Ability Housings Heat Sink | Keyword: | Heat Conductive Plastic |
---|---|---|---|
Application: | LED Housing | Feature: | Excellent Flexibility In Designing Final Products Such As Housings |
Color: | White | Specific Gravity: | 1.45 G/cm³ |
Shrinkage: | 0.3~0.5% | Thermal Condcutivity: | 1.5W/m-K |
Highlight: | conductive plastic material,conductive thermoplastic,Heat Conductive Plastic 1.8W |

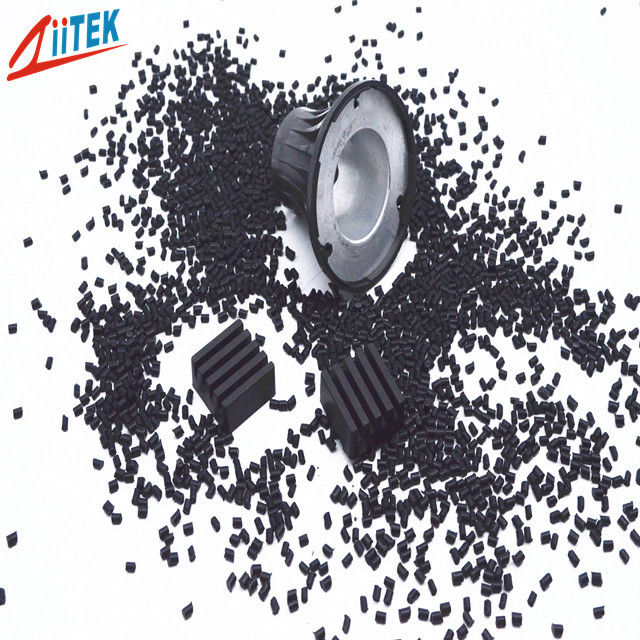

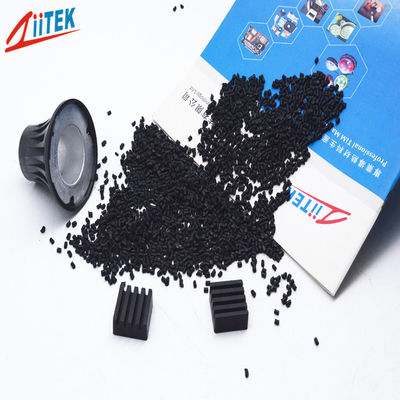

Black Nylon Heat Conductive Plastic 1.5W Flexible Moulding Ability Housings Heat Sink
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
TCP™200-15-02A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.
Application
TCP™200-15-02A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.
Features
> Good thermal conductivity: 1.5W/mK
> Excellent thermal conductivity compared to normal engineering plastics.
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting
> Excellent flexibility in designing final products such as housings.
> UL94 V-0.
Typical Properties of TCPTM200-15-02A | |||
Items | Test method | Unit | Typical data |
Physical Properties | |||
Material | ***** | ***** | Nylon |
Color | Visual | ***** | black |
Melt index | ASTM D1238 | g/10min | 150 |
Specific Gravity | ASTM D792 | g/cm3 | 1.45 |
Shrinkage | ASTM D955 | % | 0.3-0.5 |
Mechanical Properties | |||
Tensile Strength | ASTM D638 | MPa | 55 |
Flexural Strength | ASTM D790 | MPa | 70 |
Flexural Modulus | ASTM D638 | MPa | 9000 |
Impact Strength, notched | ASTM D256 | kJ/㎡ | 4.5 |
Electrical Properties | |||
Dielectric Breakdown Voltage | ASTM D149 | KV/mm | >5.5 |
Dielectric Constant, 1MHz | ASTM 150 | ***** | 4.5 |
Volume Resistivity | ASTM D257 | Ohm-meter | 8.0*10¹² |
Thermal Properties | |||
Heat Deflection Temperature | ASTM D648 | ℃ | 180 |
Vicat Temperature | ASTM D648 | ℃ | 170 |
Thermal Conductivity Throngh Plane | ASTM D5470 | W/m-K | 1.5 |
Flame retardancy | Min. thick. 1.0mm | Class | V-0 |
lnjection Parameters of Recommends | ||
TCP200-15-02A Injection parameters | Value Range | |
Barrel Zone Temperature | One sect / ℃ | 230-250°C |
Two sect / ℃ | 245-2670°C | |
Three sect / ℃ | 245-260°C | |
Mouth Temperature / ℃ | 240-260°C | |
Melt Temperature / ℃ | 245-260°C | |
Bake Temperature / ℃ | 900~120°C 4H | |
Mould Temperature / ℃ | 8~100°C | |
Injection Pressure / Bar | According to the tonnage of the machine | |
Injection Speed / mm/s | High speed | |
Remarks: Data from the laboratory of the Division I (1) above are for reference only, not as a product standard reference. (2)The typical processing conditions according to different models, different mold and product requirements to make the appropriate adjustments. |
||
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.Contact Person: Dana Dai
