| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | RoHS |
| Model Number: | TIG780-25 |
| Minimum Order Quantity: | 5kg |
|---|---|
| Price: | USD 1-100/KG |
| Packaging Details: | 1kg/can |
| Delivery Time: | 3-5 work days |
| Payment Terms: | TT |
| Supply Ability: | 10000KG/month |
| Name: | Gray 2.5W/mK LED Thermal Paste Computer Thermal Conductivity Silicone Grease Display Thermal Paste | Construction & Compostion: | Metal Oxide Filled Silicone Oil |
|---|---|---|---|
| Keywords: | LED Thermal Grease | Application: | Power Semiconductors |
| Color: | Gray | Operating Temp: | -45~200℃ |
| Specific Gravity: | 2.5 G/cm3 | Thermal Conductivity: | 2.5W/mK |
| Highlight: | high performance thermal grease,heatsink thermal grease,Non Toxic High Temperature Thermal Grease |
||
Gray 2.5W/mK LED Thermal Paste Computer Thermal Conductivity Silicone Grease Display Thermal Paste
TIG™780-25 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issue.
TIG™780-25 is presenting thermal paste products. They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance. Consequently, the heat dissipation efficiency is far superior to that offered by others.
TIG780-25-TDS_EN_REV02.1 (1).pdf
Features and Benefits
> Low thermal resistance 0.02℃-in²/W
> Non-toxic and environmentally safe.
> Outstanding electrical insulation properties.
> Thoroughly wets out contact surfaces to create low thermal resistance
Application
> LED lighting,Microprocessors,Chipsets
> Semiconductor cases and heat sinks
> Power resistors and chassis, thermostats and mating surfaces, and thermoelectric cooling devices
> CPU's and GPU's
> Automatic dispensing and screen-printing
| Typical Properties of TIG™780-25 Series | ||
| Product model | TIG™780-25 | Test Method |
| Color | Gray | Visual |
| Construction &Compostion | Metal oxide filled silicone oil | NA |
| Viscosity(Pa.s@.25℃) | 148000 | Brookfield RVF,#7 |
| Specific Gravity (g/cm³) | 2.5 | ASTM D2240 |
| Bond line thickness (mm) | 0.014 | ASTM D374 |
| Continuous Use Temp (℃) | -45℃ to 200℃ | NA |
| Evaporation (200℃@24hrs) | 0.48% | ASTM E595 |
| Thermal Conductivity (W/mK) | 2.5 | ASTM D5470 |
Package:
TIG™780 Series is available in 1kg(pint container),3kg(quart container),and 10kg(gallon container)

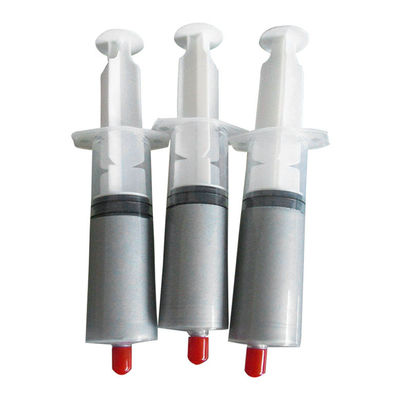

or custom packaged in syringes for automated applications.
