Name: Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components Al Server
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIG780-50HP
Price: 50.00 USD
Availability: InStock

Home Products High Temperature Thermal Grease

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components Al Server

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIG780-50HP

Payment & Shipping Terms:

Minimum Order Quantity:	5kg
Price:	USD 1-100/KG
Packaging Details:	1kg/can
Delivery Time:	3-5 work days
Payment Terms:	TT
Supply Ability:	10000KG/month

Contact Now

Detailed Product Description

Name:	Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components Al Server	Application:	Electronic Components Al Server
Specific:	2.30g/cm³	Thermal Conductivity:	5.0W/mK
Material:	Metal Oxide /silicone Oil	Color:	Gray
Continuous Use Temp:	-40℃ To 200℃	Keywords:	Thermal Grease

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components Al Server

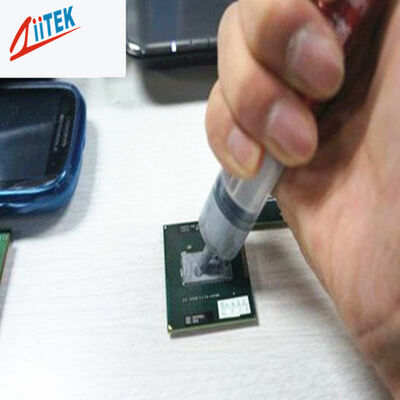

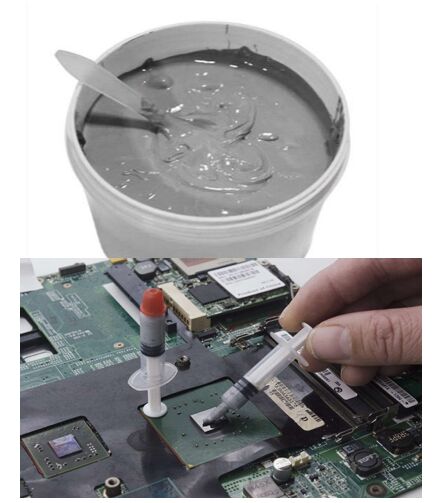

TIG^®780-50HP Series is an environmentally friendly silicone based thermal paste designed to efficiently solve overheating problems in electronic devices and improve long-term reliability, TIG^®780-50HP is a paste like material that can fully wet the surfaces of electronic components and heat sinks. It acts to fill the gaps between electronic components and heat sinks, eliminate air, and significantly improve heat dissipation eficiency (better than traditional thermal pads or ordinary silicone grease), thereby forming an extremely low thermal resistance interface and achieving excellent thermal conductivity efficiency.

Features

> High thermal conductivity
> Excellent low thermal resistance
> Good electrical insulation
> Excellent long-term stability
> Non toxic, environmentally friendly,and safe, meeting RoHS requirements

Applications lnclude

> Al server
> Industrial equipment
> Medical electronic devices
> LED TV,LED lighting fixtures
> Automotive Electronics (New Energy and Intelligence)
> High end consumer electronics and portable devices

Typical Properties of TIG^®780-50HP Series
Property	Value	Test Method
Color	Gray	Visual
Construction &Compostion	Metal oxide / Silicone oil	Ziitek Test Method
Density	2.30 g/cm³	ASTM D792
Thermal Conductivity	5.0W/mK	ASTM D5470
Bond line Thickness (mm)	0.008	ASTM D374
Thermal Impedance (℃·in²/W) @30 psi	0.015	ASTM D5470
Thermal Impedance (℃·in²/W) @50 psi	0.012	ASTM D5470
Recommended Operating Temp	-40℃ to 200℃	*****
Viscosity(mPa.s)	200000	GB/T 10247

Packaging Specifications

Packaging specifications: 0.5kg,1kg,2kg;

If you have any other specification requirements, please contact our company.

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components Al Server 0

Company profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
