Name: High Temperature Thermal Grease Silicone Thermal Compound For Electronic Component Gap Filling And Heat Transfer Solutions
Brand: Dongguan Ziitek Electronical Material and Technology Co., Ltd
SKU: TIG780-50
Price: 50.00 USD
Availability: InStock

Home Products High Temperature Thermal Grease

High Temperature Thermal Grease Silicone Thermal Compound For Electronic Component Gap Filling And Heat Transfer Solutions

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIG780-50
Document:	TIG780-50_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5kg
Price:	USD 1-100/KG
Packaging Details:	1kg/can
Delivery Time:	3-7 work days
Payment Terms:	T/T
Supply Ability:	10000KG/month

Contact Now

Detailed Product Description

Products Name:	High Temperature Thermal Grease Silicone Thermal Compound For Electronic Component Gap Filling And Heat Transfer Solutions	Keywords:	Thermal Grease
Application:	Electronic Component Gap Filling And Heat Transfer Solutions	Thermal Conductivity:	5.0W/mK
Construction:	Ceramic Filled Silicone	Density (g/cm³):	2.3
Color:	Gray	Bond Line Thickness(mm):	0.031
Highlight:	high performance thermal grease , laptop cooling thermal paste , Transmission Control Modules Thermal Grease

High Temperature Thermal Grease Silicone Thermal Compound For Electronic Component Gap Filling And Heat Transfer Solutions

Product Overview

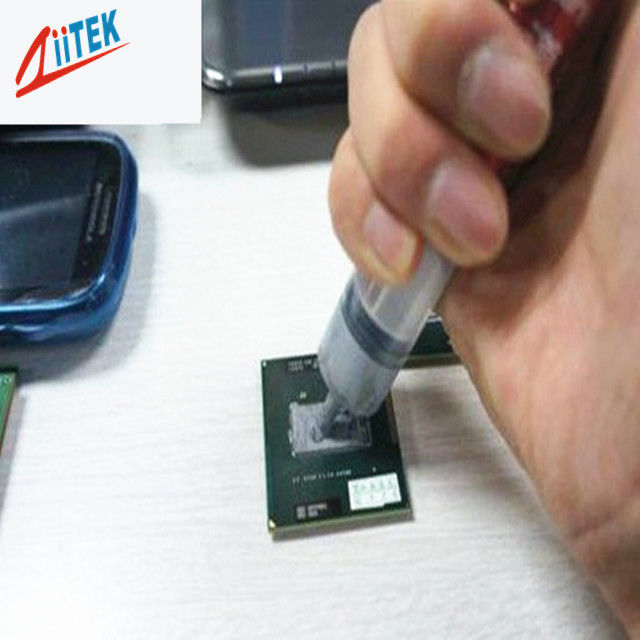

TIG^®️780-50 is a paste-like thermal interface material specifically designed for heat dissipation of various high and medium power electronic components. Under typical assembly pressure and small filling thickness, the material fully wets the contact surface, effectively eliminates interface air, and forms a continuous heat conduction path. This product is widely used in general electronic equipment cooling scenarios that require both cost and performance, including network communication, security monitoring, household appliances, and conventional industrial control hardware.

Key Features

Low thermal impedance
Non-toxic and environmentally safe
Excellent long-term stability
Thoroughly wets out contact surfaces to create low thermal impedance

Applications

Custom power modules
Telecommunications and automotive electronics
LED ceiling lamps
Monitoring power boxes
ASIC chips
Interface filling of CPU, GPU, and heat dissipation modules
Vehicle control units

Technical Specifications of TIG^®️780-50 Series

Property	Value	Test Method
Color	Gray	Visual
Construction	Ceramic filled silicone	-
Bond Line Thickness (mm)	0.031	-
Density (g/cm³)	2.3	ASTM D792
Viscosity (mPa*s) @25℃	450000	GB/T 10247
Recommended Operating Temperature (°C)	-45~200	-
Thermal Conductivity (W/mK)	5.0	ISO22007
Thermal Impedance (℃.in²/W) @30psi	0.013	ASTM D5470
Volume Resistivity (Ohm*cm)	>1.0×10¹³	ASTM D257
Volatility Loss (%) @150℃,24hrs	<0.1	-

Packaging

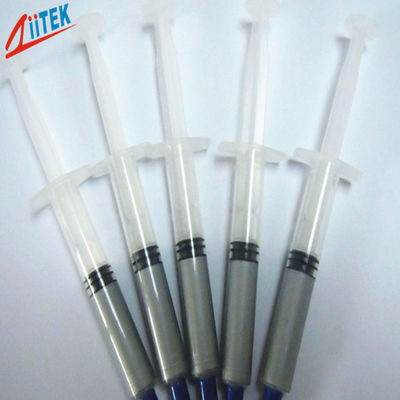

Available in 0.5kg, 1kg, and 2kg packaging. For other specifications, please contact us.

Storage Conditions

Store from 5°C to 25°C with maximum humidity of 70%. Do not store in freezer or refrigerator below 0°C. Store in low temperature and dry conditions, away from open fire and direct sunlight. Safe disposal method does not require special protection. For detailed methods, please refer to the product material safety data sheet.

Company Profile

Ziitek, founded in 2006, is a high-tech enterprise focusing on independent research and development, production, and sales. We are committed to providing customers worldwide with products and overall solutions for heat conduction, heating, sealing, and EMI. Headquartered in Dongguan, Guangdong Province, with production bases in Kunshan, Taiwan Province and Vietnam, Jiangsu Province, our global production capacity layout ensures rapid response and efficient delivery. With an R&D team composed of senior engineers, Ziitek is based on independent innovation and continues to develop cutting-edge products for new energy vehicles, energy storage systems, AI servers, 5G communications, aerospace, and other fields, with the goal of becoming a trusted strategic partner for our customers.

Frequently Asked Questions

What is Thermal Grease?

Thermal grease is a paste-like Thermal Interface Material (TIM) primarily used to fill microscopic surface irregularities and air gaps between a heat source and a heat sink.

Why does Thermal Grease reduce thermal resistance?

Thermal grease fills microscopic gaps and surface irregularities between mating surfaces, replacing low-conductivity air and improving heat transfer from the heat source to the heat sink.

Can Thermal Grease be used for long-term automotive applications?

Yes, but the thermal grease should be specifically designed and validated for automotive environments. Key factors include thermal cycling, vibration, humidity resistance, temperature resistance, and long-term reliability.

Which is better: Thermal Grease or a Thermal Pad?

There is no universal answer. Thermal grease is often suitable for very thin interface layers, while thermal pads may be more appropriate for larger gaps or applications requiring convenient and fast assembly. The best choice depends on the specific application requirements.

Can Thermal Grease provide electrical insulation?

Some thermal greases provide electrical insulation, but not all thermal greases should be assumed to be electrically insulating. The specific product's dielectric strength, volume resistivity, and other electrical properties should be reviewed before use.

How do I choose the right Thermal Grease?

Key factors include thermal conductivity, thermal resistance, viscosity, operating temperature, pump-out resistance, volatility, long-term reliability, and electrical properties. The final selection should also consider the application method and interface design.
