| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL & RoHS |
| Model Number: | TIF1120-12U Series |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 24*23*12cm cantons |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/month |
| Thickness: | 3.0mmT | Specific Gravity: | 2.5 G/cc |
|---|---|---|---|
| Dielectric Breakdown Voltage: | >5500 VAC | Thermal Conductivity: | 1.5W/m-K |
| Color: | Blue | ||
| High Light: | 3.0mmT Thermal Conductive Pad,2.13 g/cc Thermal Conductive Pad,car batteries thermal conductive silicone pad |
||

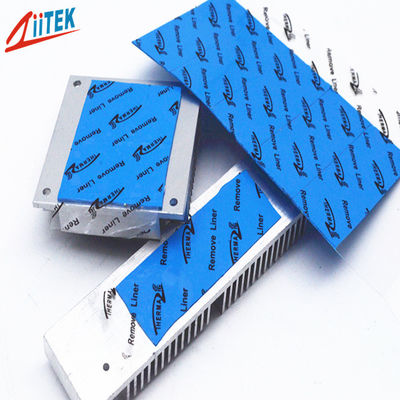

3.0mmT blue ultra soft 27shore00 silicone thermal Pad for Car Batteries TIF1120-12U Series
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
The TIF1120-12U Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
> Good thermal conductive: 1.5W/mK
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance
> Moldability for complex parts
> Soft and compressible for low stress applications
>Electrically isolating
>Outstanding thermal performance
Applications
> SAD-DC Power Adapters
> CPU
> Memory Modules
> routers
> Telecommunication hardware
> display card
> mainboard/mother board
> Mass storage devices
> LED Controller
>Audio and video components
|
Typical Properties of TIF1120-12U Series
|
||||
|
Color
|
Blue |
Visual
|
Composite Thickness
|
Thermal Impedance @10psi
(℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone elastomer
|
***
|
10mils / 0.254 mm
|
0.16
|
|
20mils / 0.508 mm
|
0.20
|
|||
|
Specific Gravity
|
2.5 g/cc
|
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
|
40mils / 1.016 mm
|
0.36
|
|||
| Thickness range | 3mmT |
ASTM C351
|
50mils / 1.270 mm
|
0.42
|
|
60mils / 1.524 mm
|
0.48
|
|||
|
Hardness
|
27 Shore 00
|
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
|
80mils / 2.032 mm
|
0.63
|
|||
|
Dielectric Breakdown Voltage
|
>5500 VAC |
ASTM D412
|
90mils / 2.286 mm
|
0.73
|
|
100mils / 2.540 mm
|
0.81
|
|||
|
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
|
120mils / 3.048 mm
|
0.93
|
|||
|
Outgassing(TML)
|
0.45%
|
ASTM E595
|
130mils / 3.302mm
|
1.00
|
|
140mils /3.556 mm
|
1.08
|
|||
|
Dielectric Constant
|
4 MHz
|
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
|
160mils / 4.064 mm
|
1.20
|
|||
|
Volume Resistivity
|
1.0X10"
Ohm-meter |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
|
180mils / 4.572 mm
|
1.32
|
|||
|
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
|
200mils / 5.080 mm
|
1.52
|
|||
|
Thermal conductivity
|
1.5W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Advantage
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
