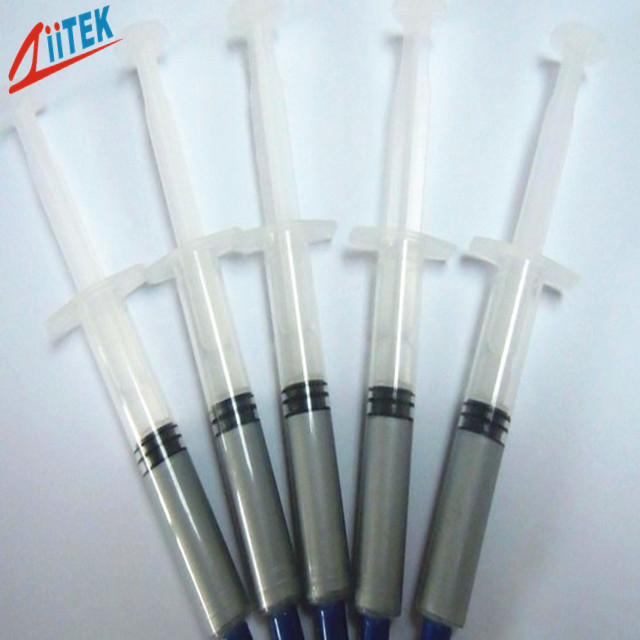

Gray Thermal Grease Metal Oxide Filled Silicone Oil For Computer CPU

Gray Thermal Grease Metal Oxide Filled Silicone Oil For Computer CPU

Gray Thermal Grease Metal Oxide Filled Silicone Oil For Computer CPU
video
Gray Thermal Grease Metal Oxide Filled Silicone Oil For Computer CPU
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHS
Model Number: TIG780-52
Payment & Shipping Terms:
Minimum Order Quantity: 5kg
Price: USD 1-100/KG
Packaging Details: 1kg/can
Delivery Time: 3-5 work days
Payment Terms: TT
Supply Ability: 10000KG/month
Contact Now
Detailed Product Description
Name: White Thermal Grease With High Performance Widely Used For Computer CPU Keywords: Thermal Conductive Grease
Application: CPU,Display Card,Mainboard/mother Board Thermal Conductivity: 5.2 W/mK
Material: Metal Oxide Filled Silicone Oil Color: Gray
Highlight:

Computer CPU Thermal Grease

,

Gray Thermal Grease

,

Metal Oxide Filled Thermal Grease

Gray thermal grease with high performance widely used for computer CPU



TIG™780-52 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issues.


TIG™780-52 is a heat conducting product in the shape of paste.They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance .Consequently, the heat dissipation efficiency is far superior to that offered by others.





Gray Thermal Grease Metal Oxide Filled Silicone Oil For Computer CPU 0



Features



> Low thermal impedance.

> Good thermal conductivity.
> Non-toxic and environmentally safe.

> Excellent long term stability.
> Thoroughly wets out contact surfaces to create low thermal resistance.


Applications


> Semiconductor cases and heat sinks
> Chipset
s and Graphic processing
> CPU's and GPU's
> Automatic dispensing and screen-printing

> LED, set top box.



Typical Properties of TIG™780-52 Series
Product Name TIG™780-52 Test Method
Color Gray Visual
Construction Metal oxide filled silicone oil Ziitek Test Method
Specific Gravity 2.3 g/cm3 ASTM 297
Thermal Conductivity 5.2W/mK ASTM D5470
Bond line Thickness(mm) 0.008 ASTM D374
Themal Impedance(℃-in²/W )@ 30 psi 0.015 ASTM D5470
Themal Impedance(℃-in²/W )@ 50 psi 0.012 ASTM D5470
Recommended operating Temp(℃) -45℃ to 200℃ Ziitek Test Method
Fire rating V-0 UL 94
Viscosity (mPa.s) 200000 GB/T 10247



Package

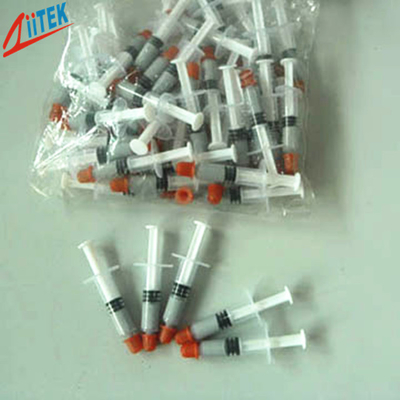

5g ~ 50g for the needle cylinder; Cans of 300ml,; 600ml ; 1200ml



Storage:
Store from 5°C to 25°C with a maximum humidity of 70%.Do not store in freezer or refrigerator below 0° C.Safe disposal method does not require special protection. The storage condition is low temperature and dry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.




Company profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.


Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.



Gray Thermal Grease Metal Oxide Filled Silicone Oil For Computer CPU 1



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
