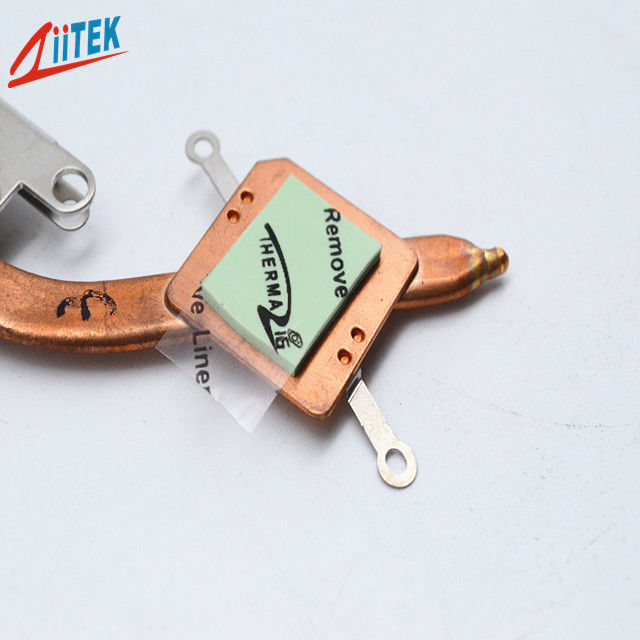

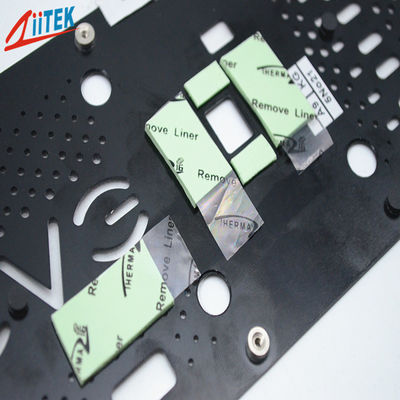

Green Color Electronic Thermal Gap Filler , Gpu Ic Chip Thermal Conductive Pad 45 Shore 00 For GPU

Green Color Electronic Thermal Gap Filler , Gpu Ic Chip Thermal Conductive Pad 45 Shore 00 For GPU

  • Green Color Electronic Thermal Gap Filler , Gpu Ic Chip Thermal Conductive Pad 45 Shore 00 For GPU
  • Green Color Electronic Thermal Gap Filler , Gpu Ic Chip Thermal Conductive Pad 45 Shore 00 For GPU
  • Green Color Electronic Thermal Gap Filler , Gpu Ic Chip Thermal Conductive Pad 45 Shore 00 For GPU
Green Color Electronic Thermal Gap Filler , Gpu Ic Chip Thermal Conductive Pad 45 Shore 00 For GPU
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF160-07S Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*23*12cm cantons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Thickness: 1.5mmT Specific Gravity: 2.10g/cc
Dielectric Breakdown Voltage: >10000 VAC Thermal Conductivity: 1.5W/m-K
Color: Green
High Light:

1.5mmT Thermal Gap Filler Pad

,

GPU Thermal Gap Filler Pad

,

IC Chip Thermal Conductive Pad

Green Color Electronic Thermal Gap Filler , Gpu Ic Chip Thermal Conductive Pad

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.


The TIF160-07S Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance

> Electrically isolating
>RoHS compliant

>Naturally tacky needing no further adhesive coating



Applications
LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> Semiconductor automated test equipment (ATE)
> CPU
> Memory Modules
display card
Telecommunication hardware

> mainboard/mother board

> IT infrastructure

> GPS navigation and other portable devices


                                            Typical Properties of TIF160-07S Series

Color
Green
Visual
Composite Thickness
Thermal Impedance @10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20
Specific Gravity
2.10 g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness range 0.010"-0.200"
ASTM C351
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
45 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Dielectric Breakdown Voltage



>10000 VAC
ASTM D412
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp



-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Outgassing(TML)
0.35%
ASTM E595
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
5.5 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20



Volume Resistivity
4.0X10"
Ohm-meter
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
1.5W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.





Green Color Electronic Thermal Gap Filler , Gpu Ic Chip Thermal Conductive Pad 45 Shore 00 For GPU 0



Advantage



Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.



FAQ

Q:Is there promotion price for big buyer?

A:Yes, we do have promotion price for big buyer. Please send us email for inquiry.



Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
