Name: Particularly Soft 1.5W/MK Thermal Gap Filler Pad For AI Processors AI Servers
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-11US
Price: 4.10 USD
Availability: InStock

Home Products CPU Thermal Pad

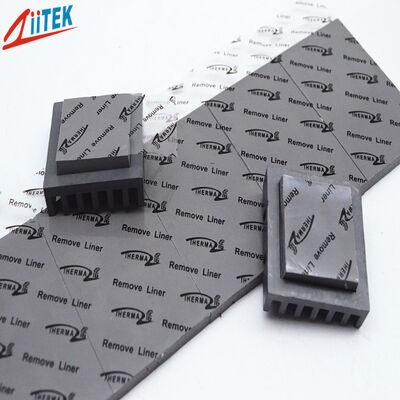

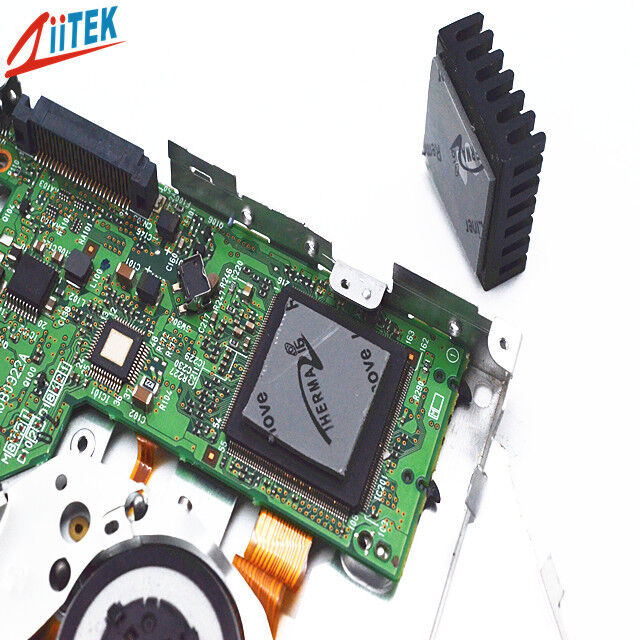

Particularly Soft 1.5W/MK Thermal Gap Filler Pad For AI Processors AI Servers

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF100-11US

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm carton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Name:	Particularly Soft 1.5W/MK Thermal Gap Filler Pad For AI Processors AI Servers	Construction:	Ceramic Filled Silicone Elastomer
Hardness:	65/20 Shore 00	Color:	Dark Gray
Application:	AI Processors AI Servers	Thermal Conductive:	1.5 W/mK
Thickness:	0.010"(0.25mm)~0.200"(5.0mm)	Density:	2.3g/cm³
Keywords:	Thermal Gap Filler Pad

Particularly Soft 1.5W/MK Thermal Gap Filler Pad For AI Processors AI Servers

Company Profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Products description

Ziitek TIF^®100-11US is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF^®100-11US is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features

> Good thermal conductive 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses

Applications

> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers

Typical Properties of TIF^®100-11US Series
Property	Value		Test method
Color	Dark gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.3		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	20 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant @1MHz	4.5		ASTM D150
Volume Resistivity(Ohm-meter)	＞1.0X10¹²		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity(W/m-K)	1.5		ASTM D5470
	1.5		ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
