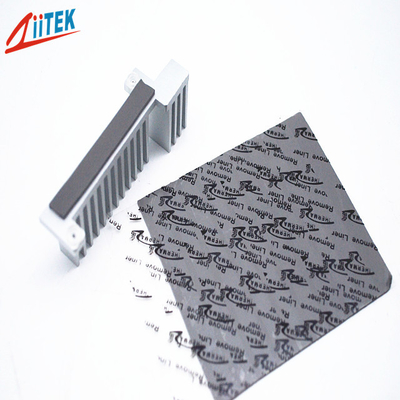

0.5mmT UL Recognized Thermal Gap Filler Pad 4.0W/MK 20 Shore 00 For Display Card

0.5mmT UL Recognized Thermal Gap Filler Pad 4.0W/MK 20 Shore 00 For Display Card

0.5mmT UL Recognized Thermal Gap Filler Pad 4.0W/MK 20 Shore 00 For Display Card
video
0.5mmT UL Recognized Thermal Gap Filler Pad 4.0W/MK 20 Shore 00 For Display Card
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF500-40-11US thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 20shore00 KEYWORD: Grey Silicone Rubber Pads
Color: Grey Part Number: TIF500-40-11US
Material: Silicone Thickness: 0.5mmT
High Light:

UL Recognized Thermal Gap Filler Pad

,

UL Recognized Thermal Pad

,

0.5mmT

0.5mmT Popular UL recognized Thermal Gap Filler Pad 4.0W/MK 20 Shore 00 Good thermal conductive for display card



TIF520-40-11US Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heatgenerating electronic components.



TIF500-40-11US Datasheet-REV02.pdf



Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

The TIF™100-12U  is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features

Broad range of hardnesses available 4.0W/mK
Electrically isolating

Outstanding thermal performance



Naturally tacky needing no further adhesive coating

Soft and Compressible for low stress applications



Thickness:0.5mmT




Applications


<power supply

<Heat pipe thermal solutions

<Memory Modules

<Automotive engine control units

<Telecommunication hardware

<Handheld portable electronics

<Rainproof LED Power

<Waterproof LED Power



Typical Properties of TIF 520-40-11US

Product Name
TIF520-40-11US Series
Colour
Grey
Construction & Compostion
Ceramic filled silicone rubber
Specific Gravity
3.1 g/cc
Dielectric Constant@1MHz
4.0 MHz
Hardness
20 Shore 00
Outgassing (TML)
0.35%
Continuos Use Temp
-40 to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
 4.0W/mK
Thickness
0.5mmT



Standard Thicknesses:
0.010" (0.25mm)  0.020" (0.51mm)  0.030" (0.76mm)  0.040" (1.02mm)  0.050" (1.27mm)  0.060" (1.52mm)      0.070" (1.78mm)  0.080" (2.03mm)  0.090" (2.29mm)  0.100" (2.54mm)  0.110" (2.79mm)  0.120" (3.05mm)      0.130" (3.30mm)  0.140"  (3.56mm) 0.150" (3.81mm)  0.160" (4.06mm)  0.170" (4.32mm)  0.180" (4.57mm)     0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.


Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.


Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.


0.5mmT UL Recognized Thermal Gap Filler Pad 4.0W/MK 20 Shore 00 For Display Card 0

Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract





Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
