1.0mmT Grey Thermal Gap Filler Pad 4.0W/MK 20 Shore 00

1.0mmT Grey Thermal Gap Filler Pad 4.0W/MK 20 Shore 00

1.0mmT Grey Thermal Gap Filler Pad 4.0W/MK 20 Shore 00
video
1.0mmT Grey Thermal Gap Filler Pad 4.0W/MK 20 Shore 00
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF540-40-11US thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 20shore00 KEYWORD: Grey Silicone Rubber Pads
Color: Grey Part Number: TIF540-40-11US
Material: Silicone Thickness: 1.0mmT
High Light:

1.0mmT Thermal Gap Filler Pad

,

Thermal Gap Filler Pad 4.0W/MK

,

Thermal Pad 20 Shore 00

1.0mmT grey Micro heat pipe thermal solutions applied Thermal Gap Filler Pad 4.0W/MK 20 Shore 00

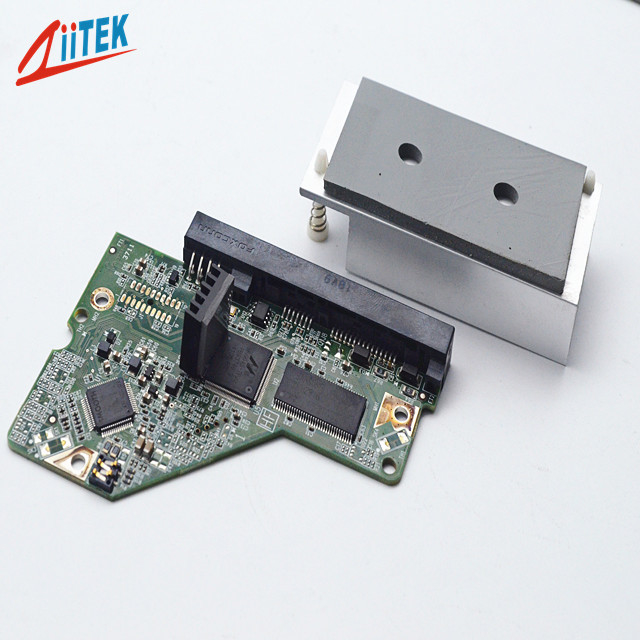

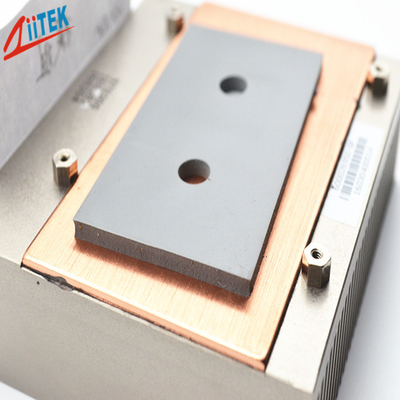

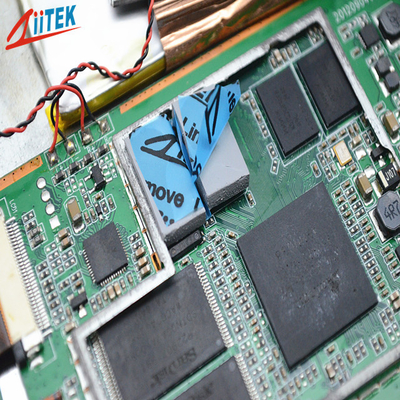

TIF540-40-11US Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heatgenerating electronic components.



TIF500-40-11US Datasheet-REV02.pdf



Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.


Features

Broad range of hardnesses available 4.0W/mK
Electrically isolating

Outstanding thermal performance



Naturally tacky needing no further adhesive coating

Soft and Compressible for low stress applications



Thickness:1.0mmT




Applications


<power supply

<Heat pipe thermal solutions

<Memory Modules

<Mass storage devices

<Automotive electronics

<Set top boxes

<Audio and video components

<IT infrastructure

<GPS navigation and other portable devices

<CD-Rom, DVD-Rom cooling

<LED Power Supply

<Rainproof LED Power

<Waterproof LED Power



Typical Properties of TIF 540-40-11US

Product Name
TIF540-40-11US Series
Colour
Grey
Construction & Compostion
Ceramic filled silicone rubber
Specific Gravity
3.1 g/cc
Dielectric Constant@1MHz
4.0 MHz
Hardness
20 Shore 00
Outgassing (TML)
0.35%
Continuos Use Temp
-40 to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
 4.0W/mK
Thickness
1.0mmT



Standard Thicknesses:
0.010" (0.25mm)  0.020" (0.51mm)  0.030" (0.76mm)  0.040" (1.02mm)  0.050" (1.27mm)  0.060" (1.52mm)      0.070" (1.78mm)  0.080" (2.03mm)  0.090" (2.29mm)  0.100" (2.54mm)  0.110" (2.79mm)  0.120" (3.05mm)      0.130" (3.30mm)  0.140"  (3.56mm) 0.150" (3.81mm)  0.160" (4.06mm)  0.170" (4.32mm)  0.180" (4.57mm)     0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.


Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL


1.0mmT Grey Thermal Gap Filler Pad 4.0W/MK 20 Shore 00 0



Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract





Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
