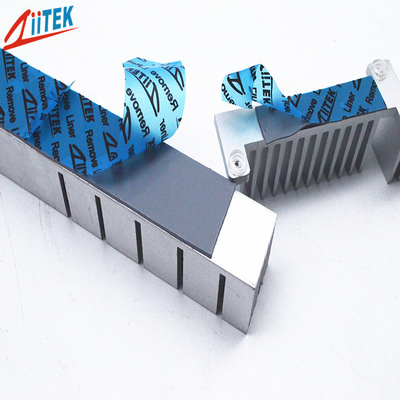

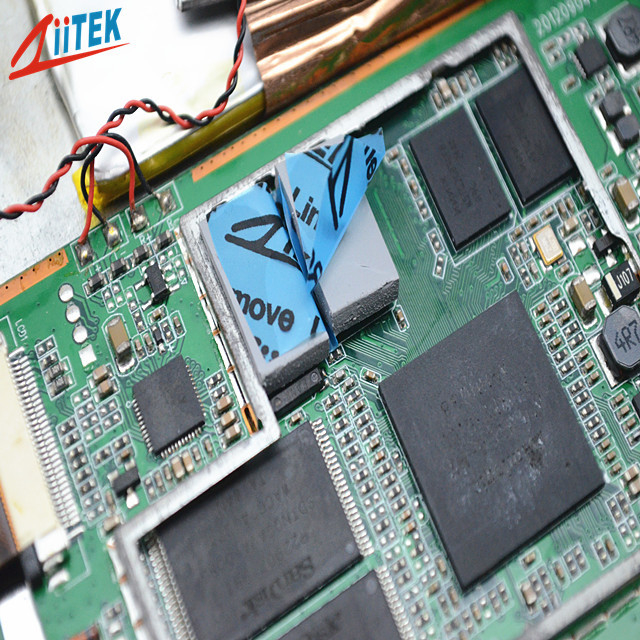

Gray 5.0mmT 2.9 G/Cc Silicone Sheets For Power Supply Heat Sinking

Gray 5.0mmT 2.9 G/Cc Silicone Sheets For Power Supply Heat Sinking

Gray 5.0mmT 2.9 G/Cc Silicone Sheets For Power Supply Heat Sinking
video
Gray 5.0mmT 2.9 G/Cc Silicone Sheets For Power Supply Heat Sinking
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF1200-30-11ES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 12 Shore00 KEYWORD: Gray Silicone Rubber Pads
Color: Gray Part Number: TIF1200-30-11ES
Material: Silicone Thickness: 5.0mmT
High Light:

2.9 g/cc silicone sheets

,

12 shore 00 silicone thermal pad

,

gray thermal pad silicone

5.0mmT 2.9 g/cc silicone sheets with outstanding thermal performance for power supply heat sinking


Company Profile

 With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



TIF100-30-11ES-Datasheet-REV02.pdf


TIF1200-30-11ES use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features
<Good thermal conductive:3.0W/mK
<Thickness:5.0mmT
<Hardness:12  Shore 00
<Colour: gray

<Moldability for complex parts

<High tack surface reduces contact resistance

<Fiberglass reinforced for puncture, shear and tear resistance


Applications

<power supply

<Heat pipe thermal solutions

<Memory Modules

<Mass storage devices

<IT infrastructure

<GPS navigation and other portable devices

<CD-Rom, DVD-Rom cooling





Typical Properties of TIF1200-30-11ES

Product Name
TIF1200-30-11ES Series
Colour
gray
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity

2.9 g/cc

Thickness

5.0mmT
Hardness
12 Shore 00
Dielectric constant@1MHz
4.0 MHz
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
 3.0W/mK
Volume Resistiviyt

1.0*1012 Ohm-cm



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.


Gray 5.0mmT 2.9 G/Cc Silicone Sheets For Power Supply Heat Sinking 0

Advantage



Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.


FAQ

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.



Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.
