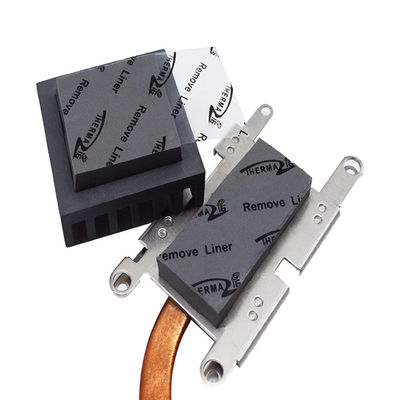

Name: 4.0mmT 3.0W/MK Heat Sink Silicone Thermal Pad With Naturally Tacky Needing No Further Adhesive Coating
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF1160-30-11ES thermal pad
Price: 4.10 USD
Availability: InStock

Home Products CPU Thermal Pad

4.0mmT 3.0W/MK Heat Sink Silicone Thermal Pad With Naturally Tacky Needing No Further Adhesive Coating

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF1160-30-11ES thermal pad
Document:	TIF100-30-11ES_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm carton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Nam:	4.0mmT 3.0W/MK Heat Sink Silicone Thermal Pad With Naturally Tacky Needing No Further Adhesive Coating	Hardness:	12 Shore 00
Keywords:	Thermal Pad	Color:	Dark Gray
Thermal Conductivity:	3.0W/mK	Construction:	Ceramic Flled Siicone Elastomer
Thickness:	4.0mmT	Sample:	Free
Highlight:	4.0mmT heat sink pad , 3.0W/mK heat sink pad , rubber silicone heat sink pad

4.0mmT 3.0W/MK Heat Sink Silicone Thermal Pad With Naturally Tacky Needing No Further Adhesive Coating

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Products description

TIF^®1160-30-11ES is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features

>Good thermal conductive
>Moldability for complex parts
>Soft and compressible for low stress applications
>Naturally tacky needing no further adhesive coating
>Available in varies thicknesses

Applications

>RDRAM memory modules
>Micro heat pipe thermal solutions
>Automotive engine control units
>Telecommunication hardware
>Handheld portable electronics
>Semiconductor automated test equipment (ATE)
>CPU
>Display card
>Mainboard/mother board

Typical Properties of TIF^®100-30-11ES Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.15		ASTM D792
Thickness Range(inch/mm)	0.020~0.030 (0.50~0.75)	0.040~0.200 (1.00~5.00)	ASTM D374
Hardness (Shore 00)	12	12	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant @1MHz	7.0		ASTM D150
Volume Resistivity	＞1.0X10¹²Ohm-meter		ASTM D257
Thermal Conductivity (W/m-K)	3.0		ASTM D5470
	3.0		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications

Standard Thickness: 0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2(Single-sided/Double-sided adhesive).

The TIF^®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

FAQ:

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
