Ultra Soft 20±5 SHORE00 Gray 3W/MK Silicone Thermal Pad TIF120-30-11US For Power Supply

Ultra Soft 20±5 SHORE00 Gray 3W/MK Silicone Thermal Pad TIF120-30-11US For Power Supply

Ultra Soft 20±5 SHORE00 Gray 3W/MK Silicone Thermal Pad TIF120-30-11US For Power Supply
video
Ultra Soft 20±5 SHORE00 Gray 3W/MK Silicone Thermal Pad TIF120-30-11US For Power Supply
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF120-30-11USthermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 20±5 Shore00 KEYWORD: Gray Silicone Rubber Pads
Color: Gray Part Number: TIF120-30-11US
Material: Silicone Thickness: 0.5mmT
High Light:

Silicone Thermal Pad Ultra Soft

,

3W/MK Silicone Thermal Pad

,

20±5 SHORE00 Silicone Thermal Pad

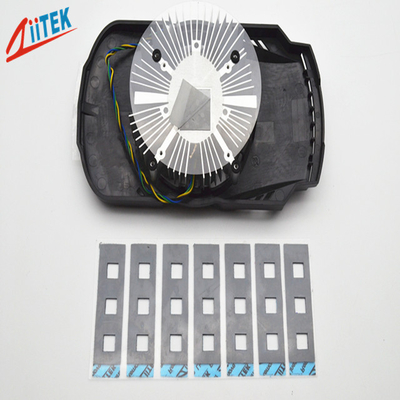

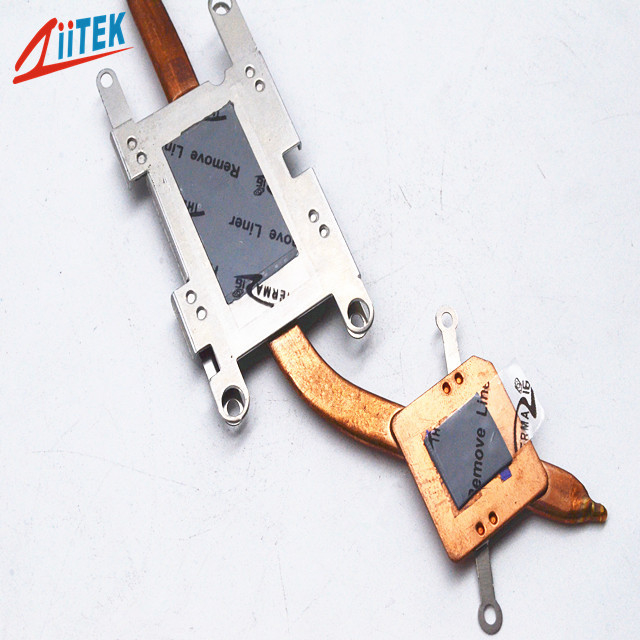

ultra soft 20±5 SHORE00 Gray 3W/MK Silicone Thermal Pad TIF120-30-11US For power supply


Company Profile

Ziitek thermal conductive interface materials are widely recognized and trusted by users and can meet continuously developing economic and social needs.



TIF100-30-11US-Series-Datasheet-.pdf


TIF120-30-11US is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features
<Good thermal conductive:3.0W/mK
<Thickness:0.5mmT
<Hardness:20±5  Shore 00
<Colour: gray

<Moldability for complex parts

<Soft and compressible for low stress applications


Applications

<power supply

<Heat pipe thermal solutions

<Memory Modules

<High speed mass storage drives

<Heat Sinking Housing at LED-lit BLU in LCD

<LED TV and LED-lit lamps





Typical Properties of TIF120-30-11US

Product Name

 TIF100-30-11US Series

Colour
gray
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity

3.0 g/cc

Thickness

0.5mmT
Hardness
 20±5Shore 00
Dielectric constant@1MHz
4.0 MHz
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
 3.0W/mK
Volume Resistiviyt

1.0*1012 Ohm-cm



Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated


Ultra Soft 20±5 SHORE00 Gray 3W/MK Silicone Thermal Pad TIF120-30-11US For Power Supply 0

FACTORY INFORMATION:



Factory Size

5,000-10,000 square meters



Factory Country/Region

Building B8, Industry District , Xicheng, Hengli Township, Dongguan City, Guangdong Province, P.R.China



Annual Output Value

US$1 Million - US$2.5 Million


FAQ

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China
