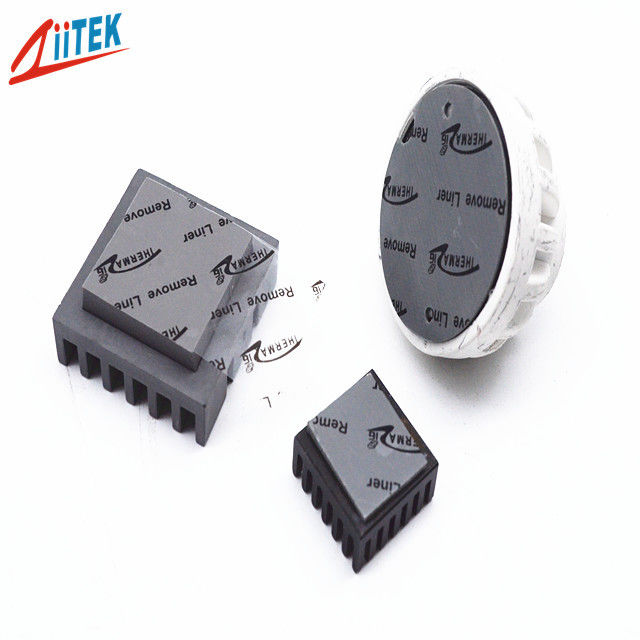

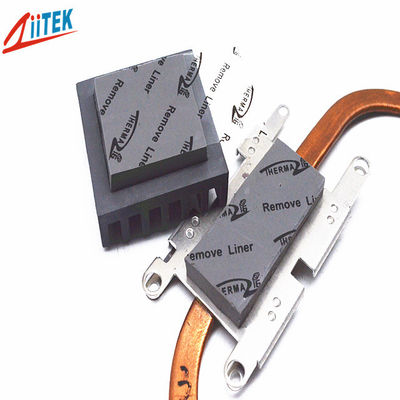

Ultra Soft 2.5mm CPU Thermal Pad 8.0W For Battery Pack RoHS And UL Certification

Ultra Soft 2.5mm CPU Thermal Pad 8.0W For Battery Pack RoHS And UL Certification

 The TIF^®700QE Series is a high-end compressible thermal pad engineered to meet top-level cooling requirements while maintaining excellent assembly workmanship. Through an innovative material formulation, it achieves an ideal combination of ultra-high thermal conductivity and moderate hardness. This unique performance balance allows it to efficiently handle the cooling challenges posed by ultra-high heat flux densities, while also providing good mechanical strength and compressibility — making it easy to process and install. It offers a reliable interface material solution with both outstanding thermal performance and high reliability for high-power-density electronic devices.

• Good thermal conductivity: 8.0 W/mK
• Soft and compressible for low-stress applications
• High-tack surface reduces contact resistance
• RoHS compliant
• UL recognized
• Naturally tacky — no further adhesive coating required
• Available in various thicknesses
• Broad range of hardnesses available
• Moldability for complex parts

• Set-top boxes
• Audio and video components
• CPU
• Display cards
• Mainboards / motherboards
• Notebooks
• IT infrastructure
• GPS navigation and other portable devices

• Standard Thickness: 0.010" (0.25 mm) ~ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
• Standard Size: 16" × 16" (406 mm × 406 mm)

• Coating Options: NS1 (non-adhesive treatment), DC1 (single-sided hardening)
• Adhesive Options: A1 / A2 (single-sided / double-sided adhesive)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

1. With PET film or foam for protection
2. Use paper card to separate each layer
3. Export carton inside and outside
4. Meet customers' requirements — customized packaging available

Lead Time: Quantity (Pieces): 5000 — Estimated time (days): to be negotiated.
