High Durability Electrically Isolating Cpu Thermal Pad

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF140-12-05US thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm carton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Name:	High Durability Electrically Isolating Cpu Thermal Pad	Hardness:	65/20 Shore00
Keywords:	Cpu Thermal Pad	Color:	Blue
Material:	Ceramic Filled Silicone Elastomer	Thermal Conductive:	1.2W/mK
Application:	GPU CPU Chip Display Card Heat Transfer	Sample:	Sample Free
Thickness:	1.0mmT
Highlight:	electrically isolating cpu thermal pad , high durability cpu thermal pad

High Durability Electrically Isolating Cpu Thermal Pad

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Products description

TIF^®140-12-05US use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features

>Good thermal conductive:1.2W/mK

>Thickness:1.0mmT

>Colour: blue

>Soft and compressible for low stress applications

>Naturally tacky needing no further adhesive coating

>Available in varies thicknesses

Applications

>Audio and video components

>IT infrastructure

>GPS navigation and other portable devices

>CD-Rom, DVD-Rom cooling

>LED Power Supply

>LED Controller

Typical Properties of TIF^®100-12-05US Series
Property	Value		Test method
Color	Blue		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	20 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	1.2 W/m-K		ASTM D5470
	1.2 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

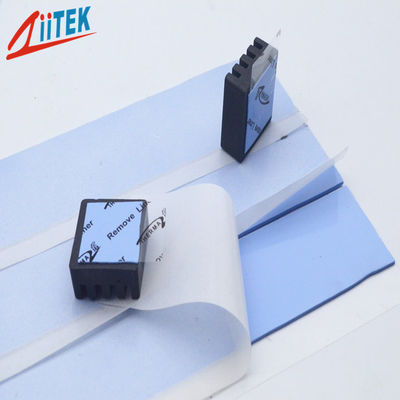

High Durability Electrically Isolating Cpu Thermal Pad 0

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

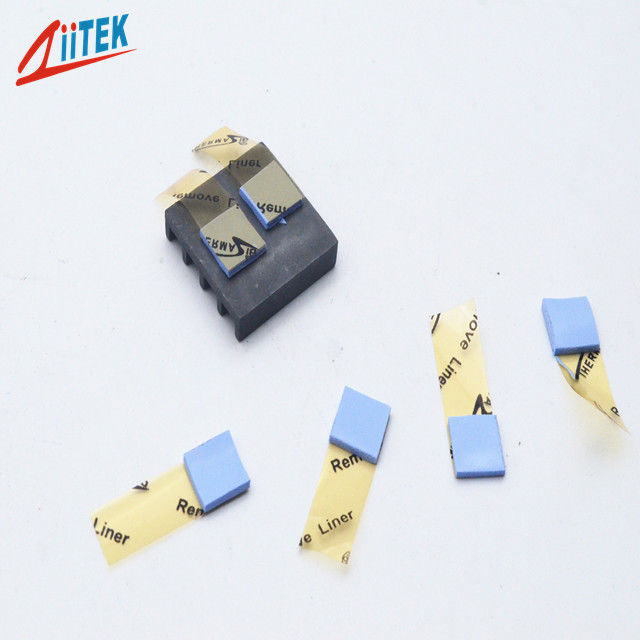

High Durability Electrically Isolating Cpu Thermal Pad 1
FAQ

Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.

Q: What thermal conductivity test method was used to achieve the values given on the data sheets?

A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.

Q: Is GAP PAD offered with an adhesive?

A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
