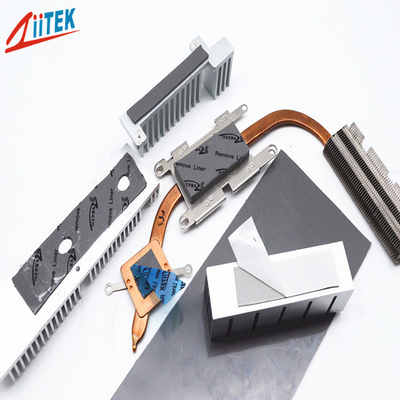

Silicone Pads For Automotive Engine Control Units 2.0mmT 3.0W/MK

Silicone Pads For Automotive Engine Control Units 2.0mmT 3.0W/MK

Silicone Pads For Automotive Engine Control Units 2.0mmT 3.0W/MK
Silicone Pads For Automotive Engine Control Units 2.0mmT 3.0W/MK
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF180-30-11US thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 20±5 Shore00 KEYWORD: Gray Silicone Rubber Pads
Color: Gray Part Number: TIF180-30-11US
Material: Silicone Thickness: 2.0mmT
High Light:

3.0W/MK Silicone Thermal Pads


Automotive Engine Control Units Silicone Pads


2.0mmT Silicone Thermal Pads

China company supplied silicone pads for Automotive engine control units,2.0mmT, 3.0W/mK

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



TIF180-30-11US  is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
<Good thermal conductive:3.0W/mK
<Hardness:20±5  Shore 00
<Colour: gray

<Fiberglass reinforced for puncture, shear and tear resistance

<Easy release construction


<IT infrastructure

<GPS navigation and other portable devices

<CD-Rom, DVD-Rom cooling


<power supply

<Heat pipe thermal solutions


Typical Properties of TIF180-30-11US
Product Name

 TIF180-30-11US Series

Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity

3.0 g/cc


 20±5Shore 00
Dielectric constant@1MHz
4.0 MHz
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
Volume Resistiviyt

1.0*1012 Ohm-cm


Standard Thicknesses:


0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)


Consult the factory to alternate thickness.

Silicone Pads For Automotive Engine Control Units 2.0mmT 3.0W/MK 0



Factory Size

5,000-10,000 square meters


Factory Country/Region

Building B8, Industry District , Xicheng, Hengli Township, Dongguan City, Guangdong Province, P.R.China


Annual Output Value

US$1 Million - US$2.5 Million

Contact Details
Dongguan Ziitek Electronical Material and Technology Ltd.

Contact Person: Miss. Dana

Tel: +86 18153789196
