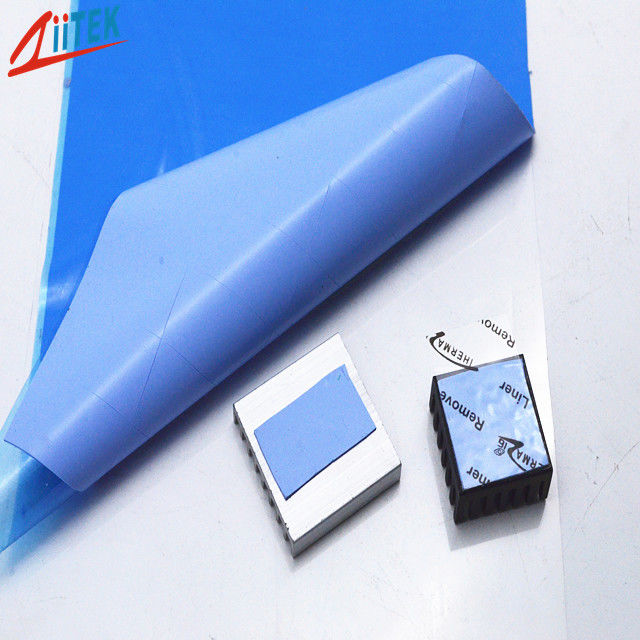

Name: Fiberglass Reinforced Dielectric Constant 7.0MHz CPU Silicone Thermal Pad For 5G Base Station & Infrastructure
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF1160-30-05US thermal pad
Price: 4.10 USD
Availability: InStock

Home Products CPU Thermal Pad

Fiberglass Reinforced Dielectric Constant 7.0MHz CPU Silicone Thermal Pad For 5G Base Station & Infrastructure

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF1160-30-05US thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Name:	Fiberglass Reinforced Dielectric Constant 7.0MHz CPU Silicone Thermal Pad For 5G Base Station & Infrastructure	Certifications:	ISO14001: 2004
Thermalconductivity:	3.0 W/mK	Keyword:	Silicone Thermal Pad
Application:	5G Base Station & Infrastructure	Color:	Blue
Density:	3.0g/cm³	Construction:	Ceramic Filled Silicone Elastomer
Highlight:	4.0 mhz cpu thermal pad , cd-rom cpu thermal pad , cd-rom silicone thermal pads

Dielectric constant 4.0 MHz high cost-effective silicone pads for CD-Rom

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

TIF^®1160-30-05US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress.This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.

Features

> Available in varies thicknesses
> Broad range of hardnesses available
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications

> Automotive electronics

> Set top boxes

> Audio and video components

> IT infrastructure

> GPS navigation and other portable devices

> CD-Rom, DVD-Rom cooling

> Computer / communication equipment.
> Laptop / tablet / PC server.
> New energy power battery / vehicle equipment.
> Switching power supply / UPS.
> Video / security equipment.
> Any heating element and radiator.

Typical Properties of TIF^®100-30-05US Series
Property	Value		Test method
Color	Blue		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	50 Shore 00	20 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	7.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	3.0 W/m-K		ASTM D5470
	3.0 W/m-K		ISO22007

Product Specification

Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us
