| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF180-32-05US thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 20 Shore 00 | Thermal Conductive: | 3.2W/mK |
|---|---|---|---|
| Name: | Volume Resistivity 1.0*1012 Ohm-cm 2.0mmT Blue Silicone Pads For Routers | Colour: | Blue |
| Volume Resistivity: | 1.0*1012 Ohm-cm | Keyword: | Thermal Gap Pad |
| High Light: | cpu thermal pad 2.0mmt,high conductivity cpu thermal pad,2mmt silicone cpu pad |
||

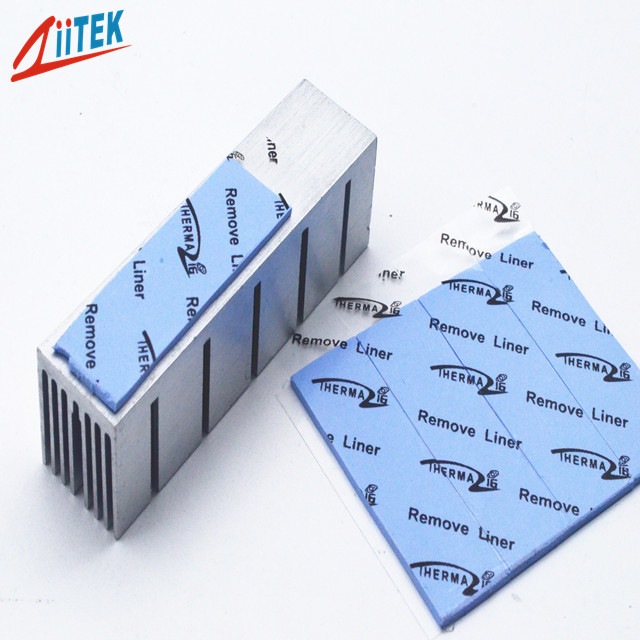

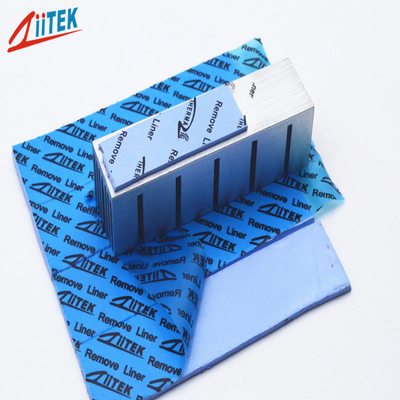

Volume Resistivity 1.0*1012 Ohm-cm 2.0mmT blue silicone pads for Routers
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
<Good thermal conductive
<Moldability for complex parts
<Soft and compressible for low stress applications
<Waterproof LED Power
<SMD LED module
<LED Flesible strip, LED bar
<LED PanelLight
<LED floor light
<Routers
|
Typical Properties of TIF180-32-05US
|
|||
|
Product Name
|
TIF180-32-05US Series |
||
|
Colour
|
blue | ||
|
Construction & Compostion
|
Ceramic filled silicone elastomer
|
||
|
Specific gravity |
3.0 g/cc
|
||
|
Thickness |
2.0mmT
|
||
|
Hardness
|
20 Shore 00
|
||
|
Dielectric constant@1MHz
|
4.0 MHz
|
||
|
Continuos Use Temp
|
-40 to 160℃
|
||
|
Dielectric Breakdown Voltage |
>5500 VAC
|
||
|
Thermal conductivity
|
3.2 W/mK
|
||
| Volume Resistivity |
1.0*1012 Ohm-cm |
||
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
