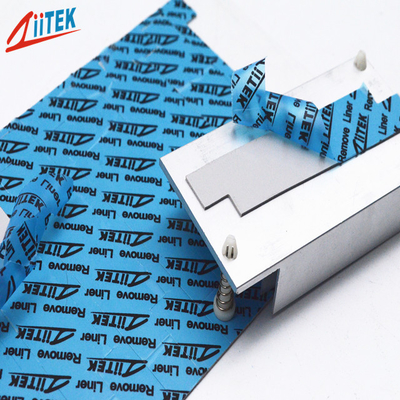

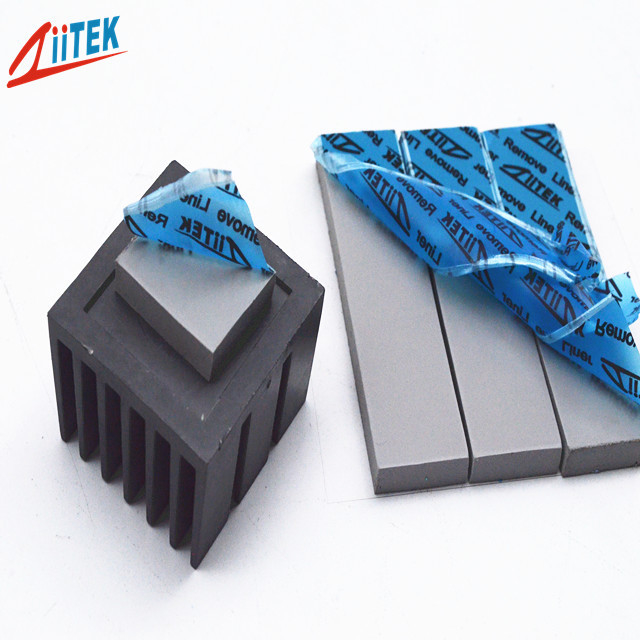

Electrically Isolating Silicone Cpu Thermal Pad 3.8 Mhz For Set Top Boxes

Electrically Isolating Silicone Cpu Thermal Pad 3.8 Mhz For Set Top Boxes

Electrically Isolating Silicone Cpu Thermal Pad 3.8 Mhz For Set Top Boxes
video
Electrically Isolating Silicone Cpu Thermal Pad 3.8 Mhz For Set Top Boxes
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF140-30-02US thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Color: Gray Name: -40 To 160℃ Electrically Isolating Silicone Pads For Set Top Boxes,3.8 MHz
Continuos Use Temp: -40 To 160℃ Dielectric Breakdown Voltage: >5500VAC
Dielectric Constant@1MHz: 3.8 MHz Keyword: Thermal Gap Pad
High Light:

electrically isolating silicone cpu thermal pad

,

cpu thermal pad 3.8 mhz

,

3.8 mhz thermal pad for cpu

-40 to 160℃ Electrically Isolating Silicone Pads for Set Top Boxes,3.8 MHz



Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



TIF100-30-02US-Datasheet-REV02.pdf



Ziitek TIF140-30-02US  is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF140-30-02US is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.



<Good thermal conductive:3.0W/mK
<Thickness:1.0mmT
<Hardness:20 Shore 00
<Colour: gray

<Easy release construction

<Electrically isolating

<High durability




Applications

<Automotive electronics

<Set top boxes

<Audio and video components

<IT infrastructure

<GPS navigation and other portable devices

<CD-Rom, DVD-Rom cooling




Typical Properties of TIF140-30-02US

Product Name

TIF140-30-02US Series

Colour
Gray
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity

2.9 g/cc

Thickness

1.0mmT
Hardness
20 Shore 00
Dielectric constant@1MHz
3.8 MHz
Continuos Use Temp
-40 to 160℃

Dielectric Breakdown Voltage

>5500 VAC
Thermal conductivity
3.0 W/mK
Volume Resistivity

1.0*1012 Ohm-cm




Standard Sheets Sizes:

8" x 16"(203mm x 406mm)



TIF™ series Individual die cut shapes can be supplied.



Electrically Isolating Silicone Cpu Thermal Pad 3.8 Mhz For Set Top Boxes 0





Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



Electrically Isolating Silicone Cpu Thermal Pad 3.8 Mhz For Set Top Boxes 1

FAQ

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
