| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF180-30-06UF thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Thermal Conductivity: | 3.0 W/mK | Keyword: | Thermal Gap Pad |
|---|---|---|---|
| Part Number: | TIF180-30-06UF | Color: | White |
| Specific Gravity: | 3.0 G/cc | Name: | 2.0mmT Moldability For Complex Parts Heat Sink Pad For Automotive Electronics |
| High Light: | heat sink thermal pad 2 mm,automotive electronics heat sink thermal pad,heatsink 2mm thermal pad |
||

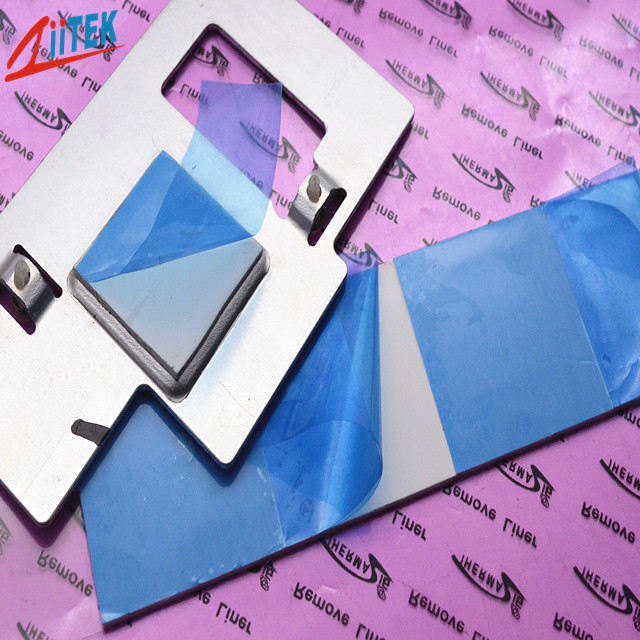

2.0mmT Moldability for Complex Parts Heat Sink Pad For Automotive Electronics
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
TIF100-30-06UF-Series-Datasheet-.pdf
<Naturally tacky needing no further adhesive coating
<Available in varies thicknesses
<Broad range of hardnesses available
<Automotive electronics
<Set top boxes
<Audio and video components
<IT infrastructure
<GPS navigation and other portable devices
<CD-Rom, DVD-Rom cooling
|
Typical Properties of TIF180-30-06UF
|
|||
|
Product Name
|
TIF180-30-06UF Series |
||
|
Colour
|
White | ||
|
Construction & Compostion
|
Ceramic filled silicone elastomer
|
||
|
Specific gravity |
3.0 g/cc
|
||
|
Thickness |
2.0mmT
|
||
|
Hardness
|
75±5 Shore 00
|
||
|
Dielectric constant@1MHz
|
5.0 MHz
|
||
|
Continuos Use Temp
|
-40 to 160℃
|
||
|
Dielectric Breakdown Voltage |
>5500 VAC
|
||
|
Thermal conductivity
|
3.0 W/mK
|
||
| Volume Resistivity |
2.3*1013 Ohm-cm |
||
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q:Is there promotion price for big buyer?
A:Yes, we do have promotion price for big buyer. Please send us email for inquiry.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Contact Person: Miss. Dana
Tel: +86 18153789196
