2.0mmT Silicone Thermal Pad Popular For Notebook Specific Gravity 2.1 G/Cm^3

2.0mmT Silicone Thermal Pad Popular For Notebook Specific Gravity 2.1 G/Cm^3

2.0mmT Silicone Thermal Pad Popular For Notebook Specific Gravity 2.1 G/Cm^3
video
2.0mmT Silicone Thermal Pad Popular For Notebook Specific Gravity 2.1 G/Cm^3
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF180N-40-10F thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Keyword: Thermal Gap Pad Continuos Use Temp: -40 To 160℃
Color: Gray Name: 2.0mmT Popular And High Cost-effective Silicone Pads For Notebook,Specific Gravity 2.1 G/cm^3
Material: Silicone Part Number: TIF180N-40-10F
High Light:

2.0mm silicone thermal pad

,

Notebook silicone thermal pad

,

2.0mm heat sink pad

2.0mmT Popular and High Cost-effective Silicone Pads for Notebook,Specific Gravity 2.1 g/cm^3



Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.



TIF100N-40-10F-Specification-sheet.pdf



Ziitek TIF180N-40-10F​ is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.




<Good thermal conductive: 4.0 W/mK
<Thickness: 2.0mmT
<Hardness:55±5 Shore 00
<Colour: gray

<Electrically isolating
<High durability
<Good thermal conductive







Applications

<mainboard/mother board

<notebook

<power supply

<Heat pipe thermal solutions

<Memory Modules

<Mass storage devices




Typical Properties of TIF180N-40-10F

Product Name TIF180N-40-10F Series
Colour Gray
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity

2.1 g/cm^3

Thickness 2.0mmT
Hardness 55±5 Shore 00
Dielectric constant@1MHz 4.7 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5500 VAC
Thermal conductivity 4.0W/mK
Volume Resistivity 1.0*1012 Ohm-cm




Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

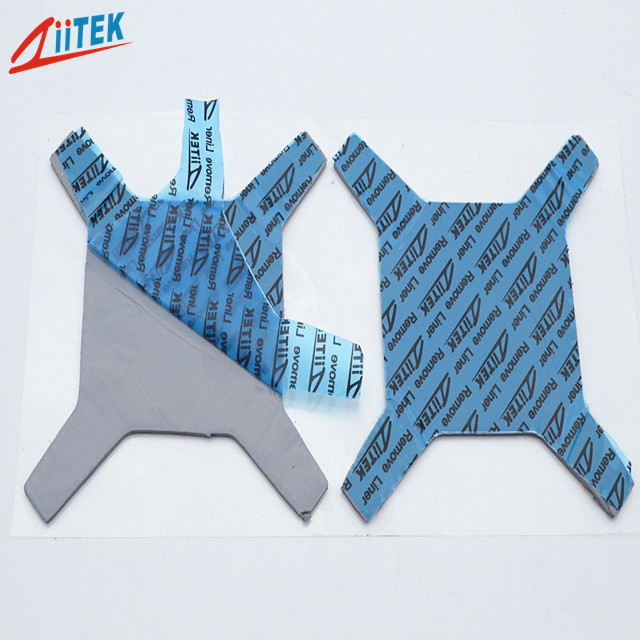

TIF™ series Individual die cut shapes can be supplied.





2.0mmT Silicone Thermal Pad Popular For Notebook Specific Gravity 2.1 G/Cm^3 0




Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



2.0mmT Silicone Thermal Pad Popular For Notebook Specific Gravity 2.1 G/Cm^3 1

FAQ

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
