| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF1100N-50-10F thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Thickness: | 2.5mmT | Keyword: | Thermal Gap Pad |
|---|---|---|---|
| Name: | 2.5mmT Outstanding Thermal Performance Silicone Pads For High Speed Mass Storage Drives | Flame Rating: | 94-V0 |
| Application: | Automotive Engine Control Units | Construction & Compostion: | Heat Sinking Housing At LED-lit BLU In LCD |
| High Light: | 2.5mm Conductive Silicone Pads,Ceramic Filled Conductive Silicone Pads,Ceramic Filled Silicone Pads |
||

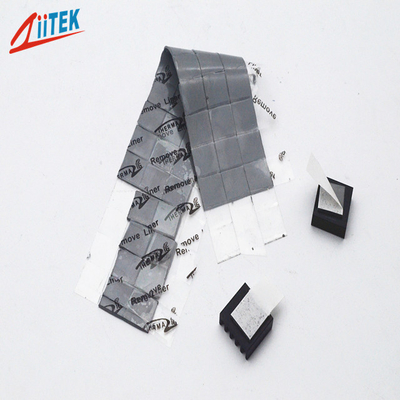

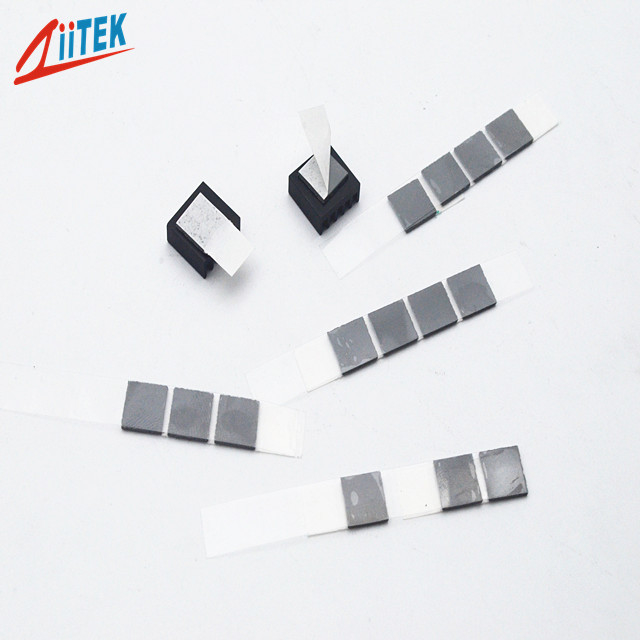

2.5mmT Outstanding Thermal Performance Silicone Pads for High Speed Mass Storage Drives
Company Profile
With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
TIF100N-50-10F-Specification-sheet.pdf
Ziitek TIF1100N-50-10F use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
< Moldability for complex parts
< Outstanding thermal performance
< High tack surface reduces contact resistance
< cooling components to the chassis of frame
< High speed mass storage drives
< Heat Sinking Housing at LED-lit BLU in LCD
< LED TV and LED-lit lamps
< RDRAM memory modules
< Micro heat pipe thermal solutions
|
Typical Properties of TIF1100N-50-10F
|
|||
| Product Name | TIF1100N-50-10F Series | ||
| Colour | Gray | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
2.1 g/cm^3 |
||
| Thickness | 2.5mmT | ||
| Hardness | 55±5 Shore 00 | ||
| Dielectric constant@1MHz | 4.7 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 5.0W/mK | ||
| Flame Rating | 94-V0 | ||
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
