Insulation Good Performance Silicone Pads For Telecommunication Hardware

Insulation Good Performance Silicone Pads For Telecommunication Hardware

Insulation Good Performance Silicone Pads For Telecommunication Hardware
video
Insulation Good Performance Silicone Pads For Telecommunication Hardware
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF1200N-50-10F thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Thickness: 5.0mmT Application: Mainboard/mother Board
Name: Insulation Good Performance Silicone Pads For Telecommunication Hardware Keyword: Thermal Gap Pad
Hardness: 55±5 Shore 00 Flame Rating: 94-V0
High Light:

Telecommunication Hardware Silicone Pads

,

94-V0 Silicone Pads

,

Hardware Silicone Heat Sink Pad

Insulation Good Performance Silicone Pads for Telecommunication Hardware



Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



TIF100N-50-10F-Specification-sheet.pdf

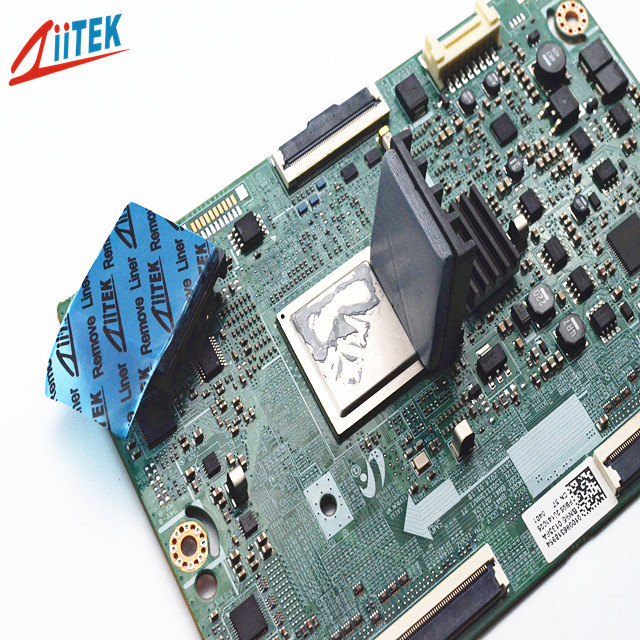

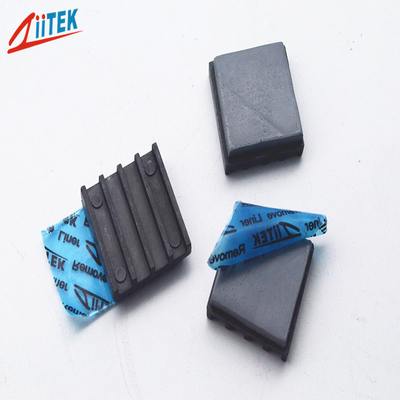

Ziitek TIF1200N-50-10F use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.




<Good thermal conductive: 5.0 W/mK
<Thickness: 5.0mmT
<Hardness:55±5 Shore 00
<Colour: gray

<Outstanding thermal performance
<High tack surface reduces contact resistance
<RoHS compliant











Applications

<Automotive engine control units

<Telecommunication hardware

<Handheld portable electronics

<Semiconductor automated test equipment (ATE)

<CPU

<display card






Typical Properties of TIF1200N-50-10F

Product Name TIF1200N-50-10F Series
Colour Gray
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity

2.1 g/cm^3

Thickness 5.0mmT
Hardness 55±5 Shore 00
Dielectric constant@1MHz 4.7 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5500 VAC
Thermal conductivity 5.0W/mK
Flame Rating 94-V0




Standard Sheets Sizes:

8" x 16"(203mm x 406mm)



TIF™ series Individual die cut shapes can be supplied.





Insulation Good Performance Silicone Pads For Telecommunication Hardware 0







Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



Insulation Good Performance Silicone Pads For Telecommunication Hardware 1

FAQ

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
