| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF2140-20-02ES thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Application: | CPU | Flame Rating: | 94-V0 |
|---|---|---|---|
| Dielectric Breakdown Voltage: | >5000 VAC | Name: | 3.5mmT Naturally Tacky Needing No Further Adhesive Coating Silicone Pads For CPU |
| Thermal Conductive: | 2.0 W/mK | Keyword: | Thermal Gap Pad |
| High Light: | CPU Silicone Pads,3.5mmT Silicone Pads,CPU Heatsink Thermal Pad |
||
3.5mmT Naturally Tacky Needing No Further Adhesive Coating Silicone Pads for CPU
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
TIF200-20-02ES-Series-Datasheet.pdf

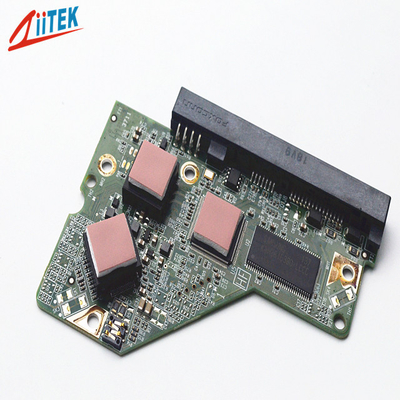

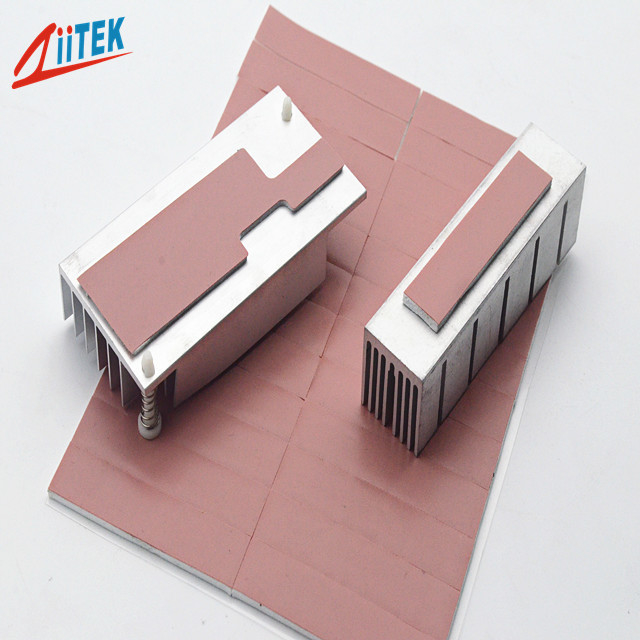

Ziitek TIF2140-20-02ES is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF2140-20-02ES is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
<Naturally tacky needing no further adhesive coating
<Available in varies thicknesses
<Broad range of hardnesses available
<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU
<display card
|
Typical Properties of TIF2140-20-02ES
|
|||
| Product Name | TIF2140-20-02ES Series | ||
| Colour | Pink/White | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
2.8 g/cm^3 |
||
| Thickness | 3.5mmT | ||
| Hardness | 10 Shore 00 | ||
| Dielectric constant@1MHz | 5.0 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5000 VAC | ||
| Thermal conductivity | 2.0W/mK | ||
| Flame Rating | 94-V0 | ||
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
Q: What is your terms of payment ?
A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
