Pink / White Outstanding Thermal Performance Thermal Pad for RDRAM Memory Modules

Pink / White Outstanding Thermal Performance Thermal Pad for RDRAM Memory Modules

Pink / White Outstanding Thermal Performance Thermal Pad for RDRAM Memory Modules
video
Pink / White Outstanding Thermal Performance Thermal Pad for RDRAM Memory Modules
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF2160-20-02ES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Pink/White Outstanding Thermal Performance Thermal Pad For RDRAM Memory Modules Application: CPU
Dielectric Breakdown Voltage: >5000 VAC Keyword: Thermal Gap Pad
Flame Rating: 94-V0 Thermal Conductive: 2.0 W/mK
High Light:

RDRAM Memory Modules Thermal Pad

,

94-V0 Thermal Pad

,

RDRAM Modules Heatsink Thermal Pad

Pink/White Outstanding Thermal Performance Thermal Pad for RDRAM Memory Modules



Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



TIF200-20-02ES-Series-Datasheet.pdf

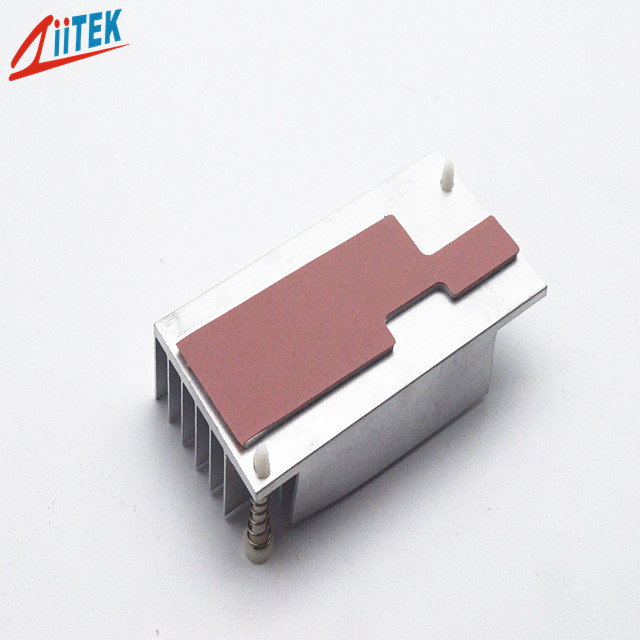

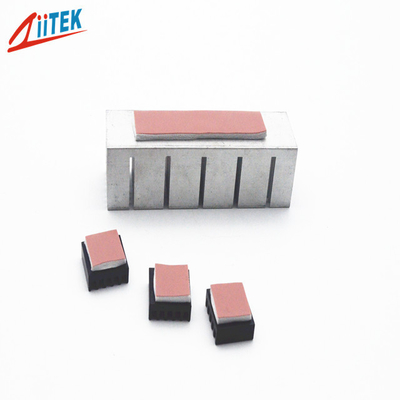

Ziitek TIF2160-20-02ES is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.




<Good thermal conductive: 2.0 W/mK
<Thickness: 4.0mmT
<Hardness:10 Shore 00
<Colour: Pink/White

<Moldability for complex parts
<Outstanding thermal performance
<High tack surface reduces contact resistance















Applications

<cooling components to the chassis of frame

<High speed mass storage drives

<Heat Sinking Housing at LED-lit BLU in LCD

<LED TV and LED-lit lamps

<RDRAM memory modules

<Micro heat pipe thermal solutions






Typical Properties of TIF2160-20-02ES

Product Name TIF2160-20-02ES Series
Colour Pink/White
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity

2.8 g/cm^3

Thickness 4.0mmT
Hardness 10 Shore 00
Dielectric constant@1MHz 5.0 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5000 VAC
Thermal conductivity 2.0W/mK
Flame Rating 94-V0




Standard Sheets Sizes:

8" x 16"(203mm x 406mm)



TIF™ series Individual die cut shapes can be supplied.
