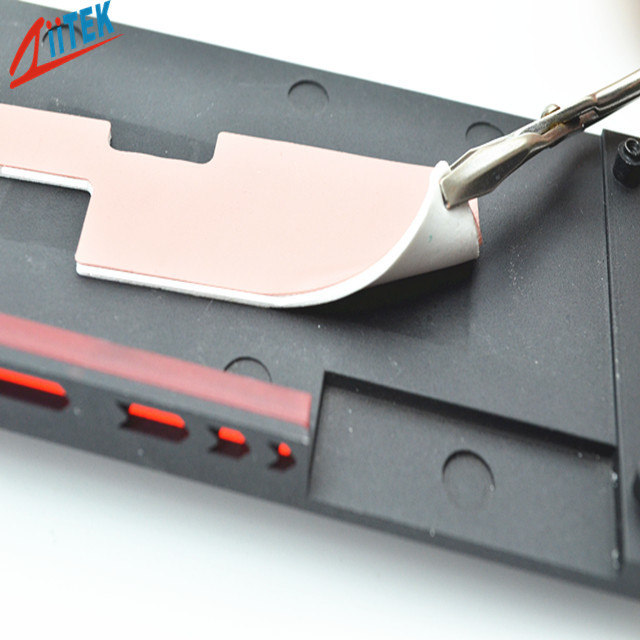

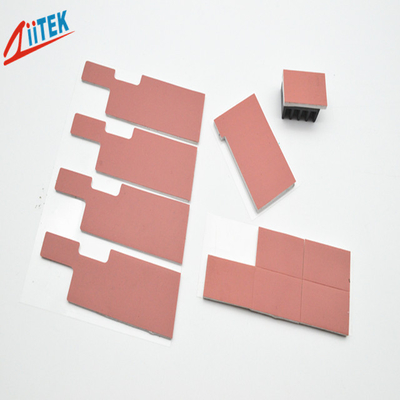

Pink/White Good Thermal Conductive Thermal Pad for Audio and Video Components

Pink/White Good Thermal Conductive Thermal Pad for Audio and Video Components

Pink/White Good Thermal Conductive Thermal Pad for Audio and Video Components
video
Pink/White Good Thermal Conductive Thermal Pad for Audio and Video Components
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF2200-20-02ES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Application: DVD-Rom Cooling Dielectric Breakdown Voltage: >5000 VAC
Thermal Conductive: 2.0 W/mK Keyword: Thermal Gap Pad
Name: Pink/White Good Thermal Conductive Thermal Pad For Audio And Video Components Flame Rating: 94-V0
High Light:

Audio Conductive Thermal Pad

,

Video Conductive Thermal Pad

,

UL Heat Sink Thermal Pad

Pink/White Good Thermal Conductive Thermal Pad for Audio and Video Components



Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.
Our vast experience allows us to assist our customers best in thermal engineering field.
We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



TIF200-20-02ES-Series-Datasheet.pdf



Ziitek TIF2200-20-02ES use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.




<Good thermal conductive: 2.0 W/mK
<Thickness: 5.0mmT
<Hardness:10 Shore 00
<Colour: Pink/White

<Electrically isolating
<High durability
<Good thermal conductive







Applications

<Automotive electronics
<Set top boxes
<Audio and video components
<IT infrastructure
<GPS navigation and other portable devices
<CD-Rom, DVD-Rom cooling



Typical Properties of TIF2200-20-02ES

Product Name TIF2200-20-02ES Series
ColourPink/White
Construction & CompostionCeramic filled silicone elastomer
Specific gravity

2.8 g/cm^3

Thickness5.0mmT
Hardness10 Shore 00
Dielectric constant@1MHz5.0 MHz
Continuos Use Temp-40 to 160℃
Dielectric Breakdown Voltage>5000 VAC
Thermal conductivity2.0W/mK
Flame Rating94-V0



Packaging Details & Lead time

The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated





Pink/White Good Thermal Conductive Thermal Pad for Audio and Video Components 0



Independent R&D team

Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online




Pink/White Good Thermal Conductive Thermal Pad for Audio and Video Components 1

FAQ

Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
