| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF7200HM thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Specific Gravity: | 3.3 G/cm^3 | Keyword: | Thermal Gap Pad |
|---|---|---|---|
| Hardness: | 45±5 Shore 00 | Name: | 5.0mmT Electrically Isolating Heat Sink Pad For LED Controller |
| Part Number: | TIF7200HM | Thickness: | 5.0mmT |
| Highlight: | Electrically Isolating Heat Sink Pad,5mm Thickness Heat Sink Pad,LED Controller Heat Sink Pad |
||

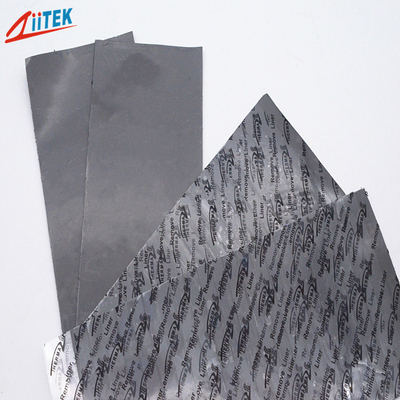

5.0mmT Electrically Isolating Heat Sink Pad For LED Controller
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Ziitek TIF7200HM is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
<Electrically isolating
<High durability
<Good thermal conductive
<LED Power Supply
<LED Controller
<LED Ceilinglamp
<Monitoring the Power Box
<AD-DC Power Adapters
<Rainproof LED Power
|
Typical Properties of TIF7200HM
|
|||
| Product Name | TIF7200HM Series | ||
| Colour | Grey | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
3.3 g/cm3 |
||
| Thickness | 5.0mmT | ||
| Hardness | 45±5 Shore 00 | ||
| Dielectric constant@1MHz | 4.5 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 6.0W/mK | ||
| Flame Rating | 94-V0 | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
FAQ
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
Q: What is your terms of payment ?
A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.Contact Person: Dana Dai
Tel: +86 18153789196
