Name: High Performance 1.0mm Thermal Conductive Pad For Rainproof LED Power
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF740L-HM thermal pad
Price: 4.10 USD
Availability: InStock

Home Products Heat Sink Thermal Pad

High Performance 1.0mm Thermal Conductive Pad For Rainproof LED Power

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF740L-HM thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	252413cm canton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Name:	High Performance Low Cost 1.0mm Thermal Conductive Pad For Rainproof LED Power	Keyword:	Thermal Conductive Pad
Thickness:	1.0mmT	Part Number:	TIF740L-HM
Specific Gravity:	3.3 G/cm^3	Hardness:	30 Shore 00
Highlight:	1.0mm Thermal Conductive Pad , Rainproof Thermal Conductive Pad , 3.3g/cm3 Thermal Pad Material

High Performance Low Cost 1.0mm Thermal Conductive Pad For Rainproof LED Power

Company Profile

With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

TIF700L-HM-Series-Datasheet-REV02.pdf

Ziitek TIF740L-HM use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

< Good thermal conductive: 6.0 W/mK

< Thickness: 1.0mmT

< Hardness: 30 Shore 00

< Colour: Grey

< Outstanding thermal performance
< High tack surface reduces contact resistance
< RoHS compliant

Applications

< Memory Modules
< Mass storage devices
< Automotive electronics
< Set top boxes
< Audio and video components
< IT infrastructure
< GPS navigation and other portable devices

Typical Properties of TIF740L-HM
Product Name	TIF740L-HM Series
Colour	Grey
Construction & Compostion	Ceramic filled silicone elastomer
Specific gravity	3.3 g/cc
Thickness	1.0mmT
Hardness	30 Shore 00
Dielectric constant@1MHz	4.5 MHz
Continuos Use Temp	-40 to 160℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	6.0W/mK
Flame Rating	94-V0

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

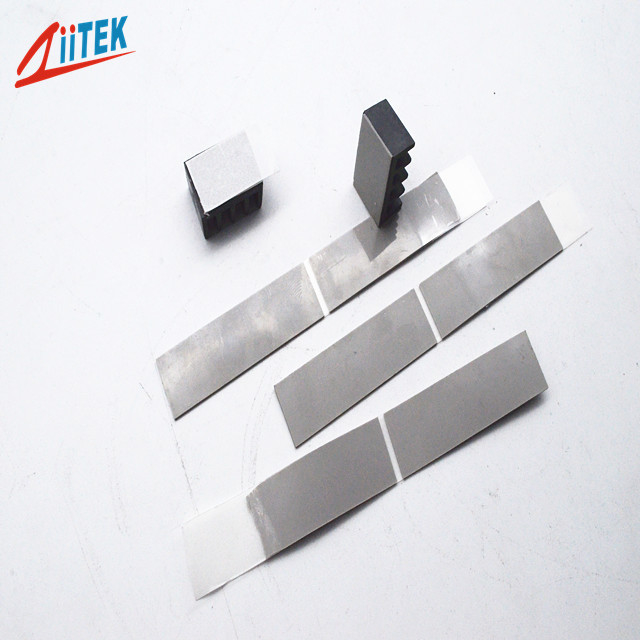

High Performance 1.0mm Thermal Conductive Pad For Rainproof LED Power 1

FAQ

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
