| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF720HZ thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Name: | Hot Selling 7W Thermal Silicone Insulation Pad For Gpu Cpu Cooling Pad 0.5mmT Low Thermal Resistance | Specific Gravity: | 3.45 G/cm^3 |
|---|---|---|---|
| Hardness: | 55±5 | Thickness: | 0.5mmT |
| Part Number: | TIF720HZ | Keyword: | Thermal Silicone Insulation Pad |
| Highlight: | 7W thermal silicone Insulation pad,0.5mmT thermal silicone Insulation pad,Low thermal resistance silicone pad |
||

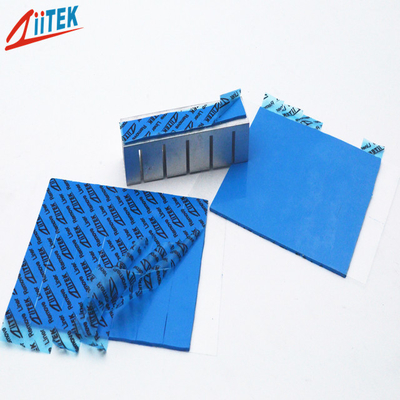

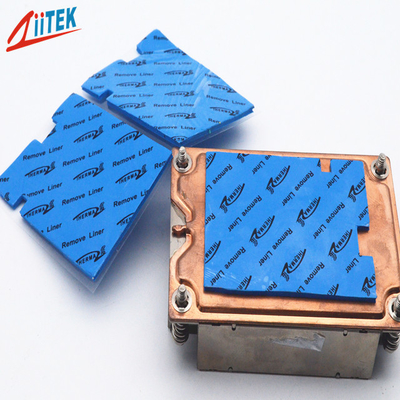

Hot selling 7W thermal silicone Insulation Pad for gpu cpu cooling pad 0.5mmT Low thermal resistance
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
TIF700HZ-Series-Datahseet.pdf
Ziitek TIF720HZ is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED PanelLight
> LED floor light
> Routers
|
Typical Properties of TIF720HZ
|
|||
| Product Name | TIF720HZ Series | ||
| Colour | Blue | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
3.45 g/cc |
||
| Thickness | 0.5mmT | ||
| Hardness | 55±5 | ||
| Dielectric constant@1MHz | 4.5 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 7.0W/mK | ||
| Flame Rating | 94-V0 | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
