Name: Heat Dissipation 7W Thermal Conductive Silicone Pad For Micro Heat Pipe Thermal Solutions
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF7160HZ thermal pad
Price: 4.10 USD
Availability: InStock

Home Products Heat Sink Thermal Pad

Heat Dissipation 7W Thermal Conductive Silicone Pad For Micro Heat Pipe Thermal Solutions

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF7160HZ thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	252413cm canton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Name:	Heat Dissipation 7W Thermal Conductive Silicone Pad For Micro Heat Pipe Thermal Solutions	Keyword:	Thermal Conductive Silicone Pad
Specific Gravity:	3.45 G/cm^3	Hardness:	55±5
Part Number:	TIF7160HZ	Thickness:	4.0mmT
Highlight:	7W Thermal Conductive Silicone Pad , Heat Dissipation Thermal Conductive Silicone Pad , Micro Heat Pipe Thermal Silicone Pad

Heat Dissipation 7W Thermal Conductive Silicone Pad for Micro Heat Pipe Thermal Solutions

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

TIF700HZ-Series-Datahseet.pdf

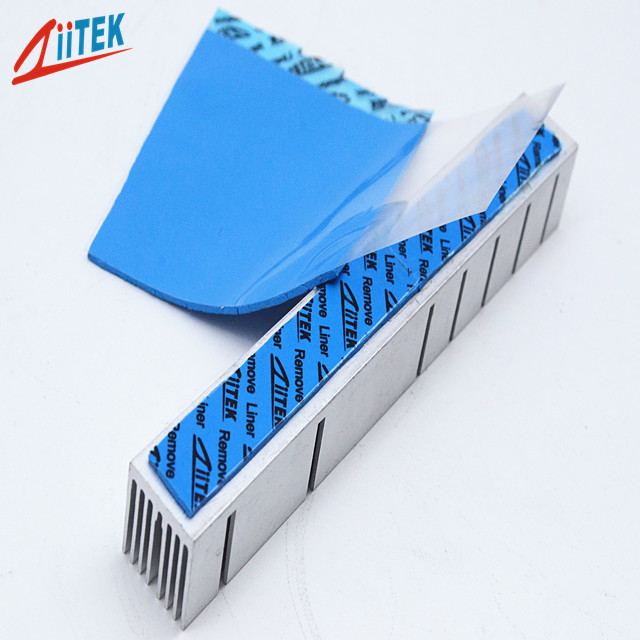

Heat Dissipation 7W Thermal Conductive Silicone Pad For Micro Heat Pipe Thermal Solutions 0

Ziitek TIF7160HZ thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

< Good thermal conductive: 7.00 W/mK

< Thickness: 4.0mmT

< Hardness: 55±5

< Colour: blue

< Moldability for complex parts
< Outstanding thermal performance
< High tack surface reduces contact resistance

Applications

> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices

Typical Properties of TIF7160HZ
Product Name	TIF7160HZ Series
Colour	Blue
Construction & Compostion	Ceramic filled silicone elastomer
Specific gravity	3.45 g/cc
Thickness	4.0mmT
Hardness	55±5
Dielectric constant@1MHz	4.5 MHz
Continuos Use Temp	-40 to 160℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	7.0W/mK
Flame Rating	94-V0

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
