| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF7180HZ thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Name: | Factory High Thermal Conductivity Adhesive Silicone Thermal Pads | Thickness: | 4.5mmT |
|---|---|---|---|
| Specific Gravity: | 3.45 G/cm^3 | Hardness: | 55±5 |
| Part Number: | TIF7180HZ | Keyword: | Thermal Pads |
| High Light: | High Adhesive Silicone Thermal Pads,Adhesive Silicone Thermal Pads,Factory Adhesive Silicone Thermal Pads |
||
Factory High Thermal Conductivity Adhesive Silicone Thermal Pads
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
TIF700HZ-Series-Datahseet.pdf

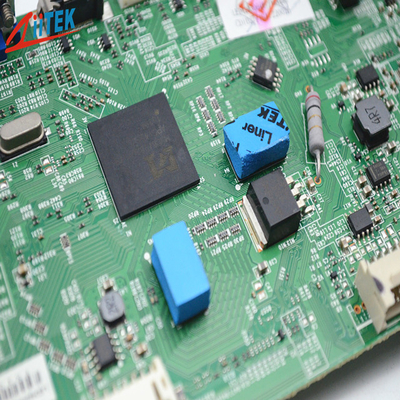

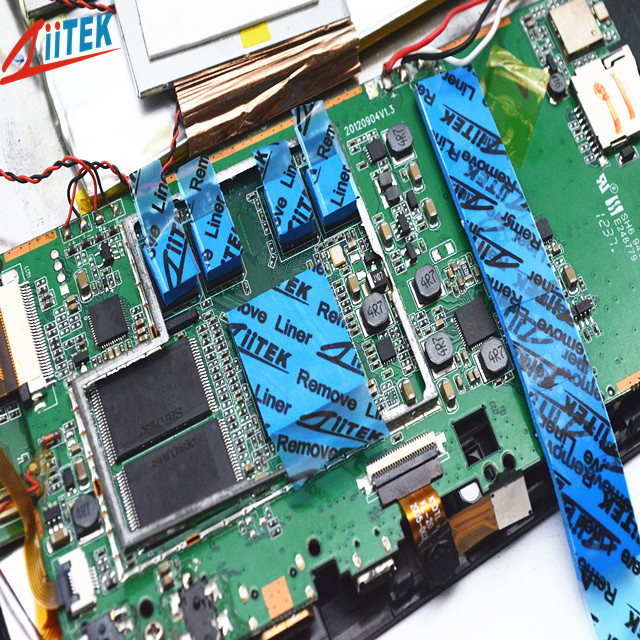

Ziitek TIF7180HZ use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
< RoHS compliant
< UL recognized
< Fiberglass reinforced for puncture, shear and tear resistance
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
|
Typical Properties of TIF7180HZ
|
|||
| Product Name | TIF7180HZ Series | ||
| Colour | Blue | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
3.45 g/cc |
||
| Thickness | 4.5mmT | ||
| Hardness | 55±5 | ||
| Dielectric constant@1MHz | 4.5 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 7.0W/mK | ||
| Flame Rating | 94-V0 | ||
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
.
FAQ
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
