Thermal Conductive Sheet Thermal Gap Filler Pad

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF7160PUS thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	252413cm canton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Name:	Thermal Conductive Sheet Thermal Gap Filler Pad	Specific Gravity:	3.2 G/cm³
Hardness:	20	Thickness:	4.0mmT
Part Number:	TIF7160PUS	Keyword:	Thermal Conductive Sheet
Highlight:	Thermal Gap Filler Pad , Conductive Sheet Thermal Gap Filler Pad

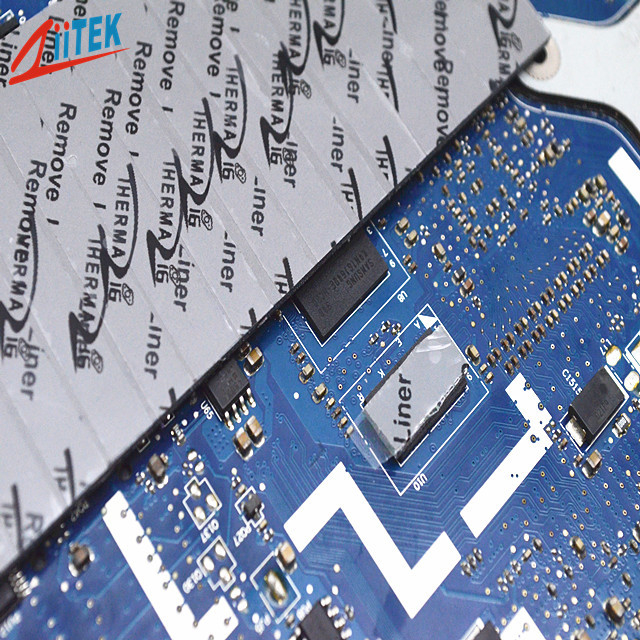

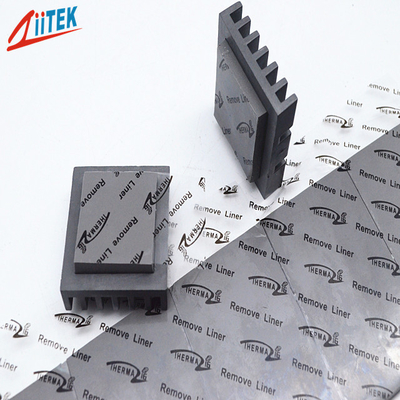

Thermal Conductive Sheet Thermal Gap Filler Pad

Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

TIF700PUS-data sheet.pdf

Thermal Conductive Sheet Thermal Gap Filler Pad 0

Ziitek TIF7160PUS is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

< Good thermal

< Hardness: 20

< Colour: gray

< RoHS compliant
< UL recognized
< Fiberglass reinforced for puncture, shear and tear resistance

Applications

> LED Panel Light
> LED floor light
> Routers
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD

Typical Properties of TIF7160PUS
Product Name	TIF7160PUS Series
Colour	Gray
Construction & Compostion	Ceramic filled silicone elastomer
Specific gravity	3.2 g/cc
Thickness	4.0mmT
Hardness(Shore 00)	20
Dielectric constant@1MHz	4.5 MHz
Continuos Use Temp	-40 to 160℃
Dielectric Breakdown Voltage	>6000 VAC
Thermal conductivity	7.5W/mK
Flame Rating	94-V0

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
