Upgrade Your Heat Transfer System with 3.5mmT TIF7140PES Thermally Conductive Pad

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF7140PES thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	252413cm canton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Name:	Thermally Conductive Pad Heat Transfer	Part Number:	TIF7140PES
Specific Gravity:	3.2 G/cm³	Hardness:	10
Thickness:	3.5mmT	Keyword:	Thermally Conductive Pad
Highlight:	Upgrade Thermally Conductive Pad , TIF7140PES Thermally Conductive Pad , 3.5mmT Thermally Conductive Pad

Thermally Conductive Pad Heat Transfer

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

TIF700PES-(TDS-EN-REV04).pdf

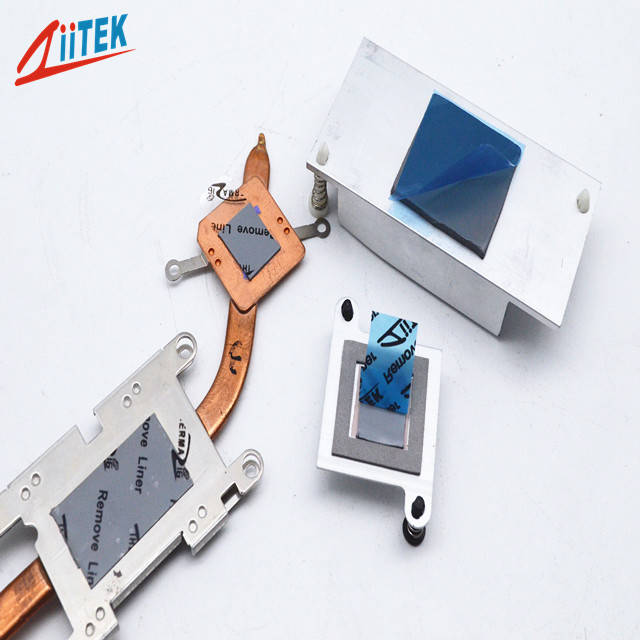

Upgrade Your Heat Transfer System with 3.5mmT TIF7140PES Thermally Conductive Pad 0

Ziitek TIF7140PES is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF140PES is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

< Good thermal conductive

< Hardness: 10

< Colour: gray

< Available in varies thicknesses
< Broad range of hardnesses available
< Moldability for complex parts

Applications

> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply

Typical Properties of TIF7140PES
Product Name	TIF7140PES Series
Colour	Gray
Construction & Compostion	Ceramic filled silicone elastomer
Specific gravity	3.2 g/cc
Thickness	3.5mmT
Hardness(Shore 00)	10
Dielectric constant@1MHz	5~6 MHz
Continuos Use Temp	-40 to 160℃
Dielectric Breakdown Voltage	>5000 VAC
Thermal conductivity	7.5W/mK
Flame Rating(no.E331100)	V-0

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
