Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU

Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU

  • Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU
  • Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU
Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF7200PES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads For CPU Keyword: Thermal Conductive Sheet
Specific Gravity: 3.2 G/cm³ Hardness: 10
Thickness: 5.0mmT Part Number: TIF7200PES
High Light:

Customized Silicon Thermal Insulation Sheet

,

CPU Thermal Conductive Pad

,

Manufacturer Thermal Conductive Pad

Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU



Company Profile



With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.





TIF700PES-(TDS-EN-REV04).pdf





Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU 0

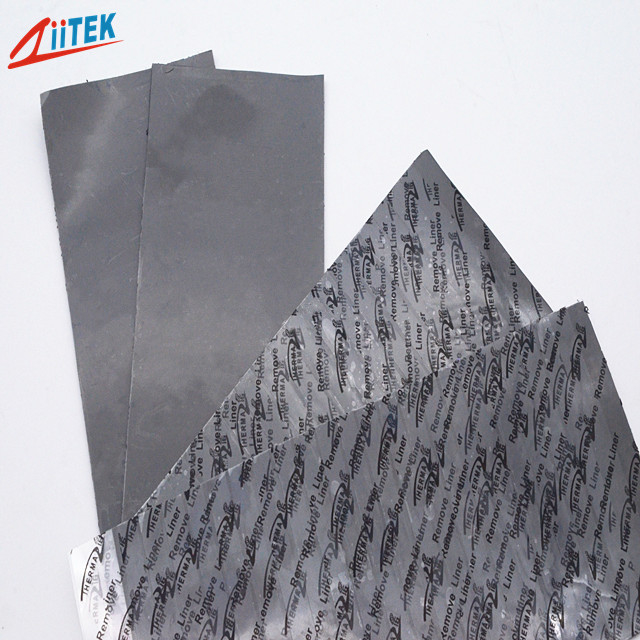

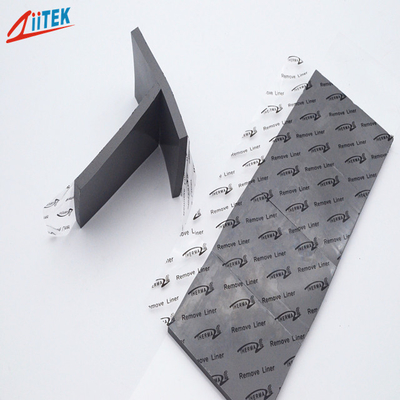

Ziitek TIF7200PES use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.





< Good thermal conductive
< Hardness: 10
< Colour: gray

< Good thermal conductive
< Moldability for complex parts
< Soft and compressible for low stress applications







Applications


> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar








Typical Properties of TIF7200PES

Product Name TIF7200PES Series
Colour Gray
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity

3.2 g/cc

Thickness 5.0mmT
Hardness(Shore 00) 10
Dielectric constant@1MHz 5~6 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5000 VAC
Thermal conductivity 7.5W/mK
Flame Rating(no.E331100) V-0



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.

Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU 1

Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online





FAQ



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.



Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
