| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF760Q thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Name: | 8W/mk Thermally Silicone Pad For AI | Keyword: | Thermal Conductive Sheet |
|---|---|---|---|
| Specific Gravity: | 3.55g/cm³ | Hardness: | 60±10 |
| Thickness: | 1.5mmT | Part Number: | TIF760Q |
| Highlight: | 8W/mk Thermal Conductive Sheet,AI Thermal Conductive Sheet,1.5mmT Thermal Conductive Sheet |
||

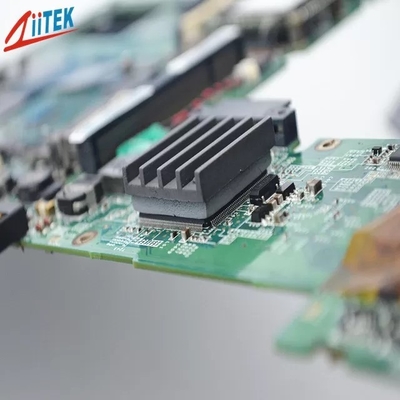

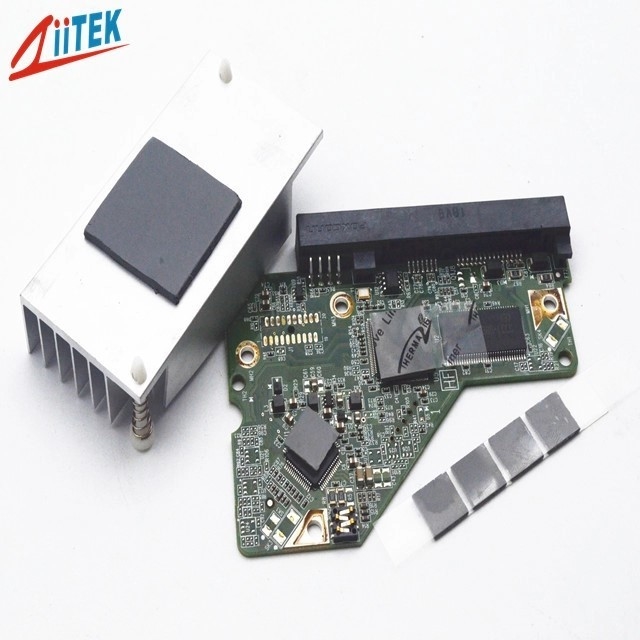

8W/mk Thermally Silicone Pad for AI
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
Ziitek TIF760Q is an extremely soft gap filling material rated at a thermal conductivity of 8W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. Ziitek TIF760Q is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use.
< Moldability for complex parts
< Outstanding thermal performance
< High tack surface reduces contact resistance.
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
|
,Typical Properties of TIF760Q
|
|||
| Product Name | TIF760Q Series | ||
| Colour | Gray | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
3.55 g/cc |
||
| Thickness | 1.5mmT | ||
| Hardness(Shore 00) | 60±10 | ||
| Dielectric constant@1MHz | 4.5MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | ≥5500 VAC | ||
| Thermal conductivity | 8.0W/mK | ||
| Flame Rating(no.E331100) | 94-V0 | ||
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
