High Temperature Resistance Thermal Conductive Double Sided Adhesive Transfer Tape

High Temperature Resistance Thermal Conductive Double Sided Adhesive Transfer Tape

High Temperature Resistance Thermal Conductive Double Sided Adhesive Transfer Tape
video
High Temperature Resistance Thermal Conductive Double Sided Adhesive Transfer Tape
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHS
Model Number: TIA808FG
Payment & Shipping Terms:
Minimum Order Quantity: 1000rolls
Price: 0.1-10 USD/pcs
Packaging Details: 24*23*12cm
Delivery Time: 3-6 work days
Payment Terms: T/T
Supply Ability: 1000000rolls/month
Contact Now
Detailed Product Description
Products Name: High Temperature Resistance Thermal Conductive Double Sided Adhesive Transfer Tape Keywords: Thermal Conductive Adhesive Tape
Feature: Fiberglass Adhesive Double Side Application: LED Controller
Color: White Thermal Conductivity: 0.8 W/mK
Adhesive Type: Acrylic Adhesive
Highlight:

High Temperature Resistance Thermal Conductive Tape

,

Double Sided Thermal Conductive Tape

High Temperature Resistance Thermal Conductive Double Sided Adhesive Transfer Tape



With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.



The TIA™800FG Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.


TIA800FG Series Datasheet-(E)-REV01.pdf

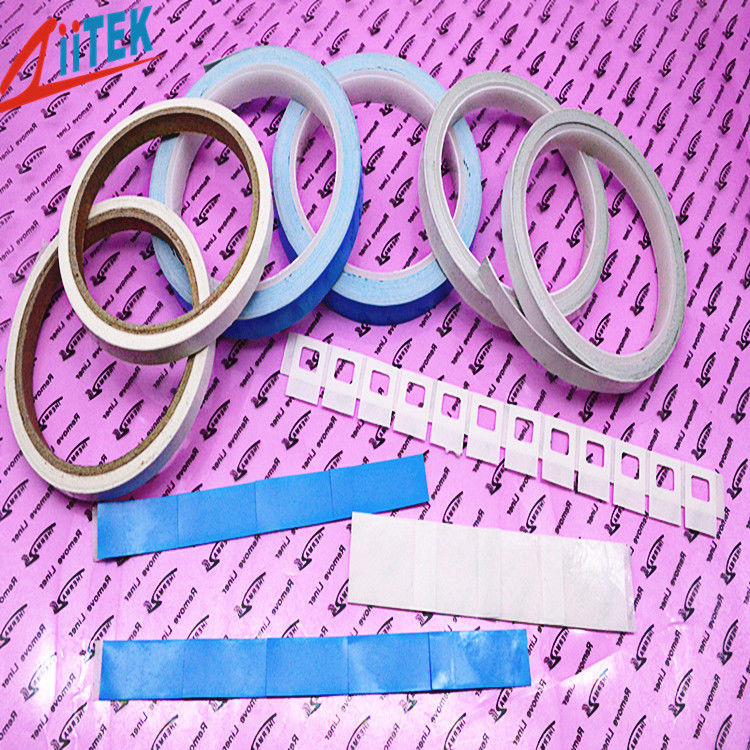

High Temperature Resistance Thermal Conductive Double Sided Adhesive Transfer Tape 0

Features


> Thermal Conductivity: 0.8 W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive



Applications


> LED Controller
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light







                                                            Typical Properties of TIA™800FG Series



Product Name TIATM805FG TIATM806FG TIATM808FG TIATM810FG TIATM815FG TIATM820FG Test Method
Color White Visual
Adhesive Type Acrylic Adhesive ********
Backing Type Glass fiber ********
Composite Thickness 0.005" 0.127mm 0.006" 0.152mm 0.008" 0.203mm 0.010" 0.254mm 0.015" 0.381mm 0.020" 0.508mm ASTM D374
Aluminum Foil Thickness ±0.001" ±0.025mm ±0.001" ±0.025mm ±0.0012" ±0.03mm ±0.0012" ±0.03mm ±0.0015" ±0.038mm ±0.002" ±0.05mm ASTM D374
Voltage Breakdown > 2000 Vac > 2000 Vac > 2300 Vac > 3000 Vac > 3500 Vac > 3500 Vac ASTM D149
Peel Adhesion 1200 g/inch2 JIS K02378
Holding Power 25℃/Days > 120 kg/inch2 JIS K023711
Holding Power 120℃/Hours > 10 kg/inch2 JIS K023711
Recommend Using Pressure 10 psi ********
Thermal Conductivity 0.8 W/mK ********
Thermal Impedance@50psi 0.52℃-in²/W 0.59℃-in²/W 0.83℃-in²/W 0.91℃-in²/W 1.15℃-in²/W 1.43℃-in²/W ASTM D5470


Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.010"(0.254mm) 0.015"(0.381mm) 0.020"(0.508mm)
Consult the factory alternate thickness.


Standard Sizes:
10" x 18"(254mm x 457mm) 10" x 400'(254mm x 121.9M)
Individual die cut shapes can be supplied.


Reinforcement:
TIA™800 Series sheets are fiberglass reinforced.

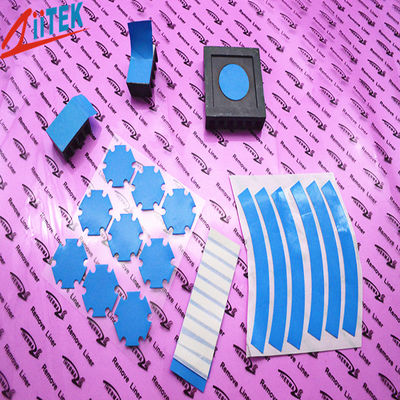

High Temperature Resistance Thermal Conductive Double Sided Adhesive Transfer Tape 1




Certifications:



ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
