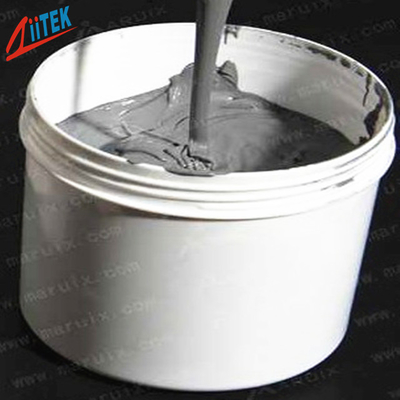

Silicone Oil Filled Thermal Putty for Low Thermal Resistance in LED Applications

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIG780-25

Payment & Shipping Terms:

Minimum Order Quantity:	5kg
Price:	USD 1-100/KG
Packaging Details:	1kg/can
Delivery Time:	3-5 work days
Payment Terms:	TT
Supply Ability:	10000KG/month

Contact Now

Detailed Product Description

Keywords:	Thermal Putty	Application:	CPU GPU Heat Sink LED Light
Thermal Conductivity:	2.5W/mK	Material:	Metal Oxide Filled Silicone Oil
Viscosity:	2200 Cps @25℃	Color:	Gray
Highlight:	Silicone Oil Filled Thermal Putty , LED Applications Thermal Putty , Low Thermal Resistance Thermal Putty

Thermal Putty 2.5 W Silicone Insulating Low Thermal Resistance Thermal Conductive Paste for LED

The TIG™780-25 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issues.

TIGTM780-25 is presenting thermal paste products. They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance. Consequently, the heat dissipation efficiency is far superior to that offered by others.

TIG780-25-Series-Datasheet.pdf

Features
> Good thermal conductivity.
> Non-toxic and environmentally safe.
> Excellent long term stability.
> Thoroughly wets out contact surfaces to create low thermal resistance.

Applications

>Microprocessors
>Chipsets
>Graphic processing chips
>Set Top Box
>LED light,CPU,GPU.

Typical Properties of TIG™780-25 Series
ProductName	TIG™780-25	Test Method
Color	Gray	Visual
Construction &	Metal oxide filled silicone oil	*****
Compostion	Metal oxide filled silicone oil	*****
Viscosity	2200K cps @.25℃	Brookfield RVF,#7
Specific Gravity	2.46 g/cm3	ASTM 2240
Continuous Use Temp	-45℃ to 200℃	*****
Evaporation	0.15% / 200℃@24hrs	ASTM E595
Thermal Conductivity	2.5 W/mK	ASTM D5470
Thermal lmpedance	0.02℃-in²/W @ 50 psi(344 KPa)	ASTM D5470

Package:
TIG™780 Series is available in 1kg(pint container),

3kg(quart container),

10kg(gallon container)

or custom packaged in syringes for automated applications.

Storage:
Store from 20°C to 35°C with a maximum humidity of

50%.Do not store in freezer orrefrigerator below 10°C.
