| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | RoHS |
| Model Number: | TIG780-50 |
| Minimum Order Quantity: | 5kg |
|---|---|
| Price: | USD 1-100/KG |
| Packaging Details: | 1kg/can |
| Delivery Time: | 3-5 work days |
| Payment Terms: | TT |
| Supply Ability: | 10000KG/month |
| Products Name: | Good Performance 1kg CPU PCB Thermal Conductive Silicone Grease For Electronic Component Gap Filling | Application: | Electronic Component Gap Filling |
|---|---|---|---|
| Thermal Conductivity: | 5.0W/mK | Material: | Heat Conduction Filler / Silicone Oil |
| Continuous Use Temp: | -45~200℃ | Color: | Gray |
| Keywords: | Thermal Conductive Silicone Grease | ||
| Highlight: | 1kg Thermal Conductive Silicone Grease,Electronic Component Gap Filling Silicone Grease,PCB Thermal Conductive Silicone Grease |
||

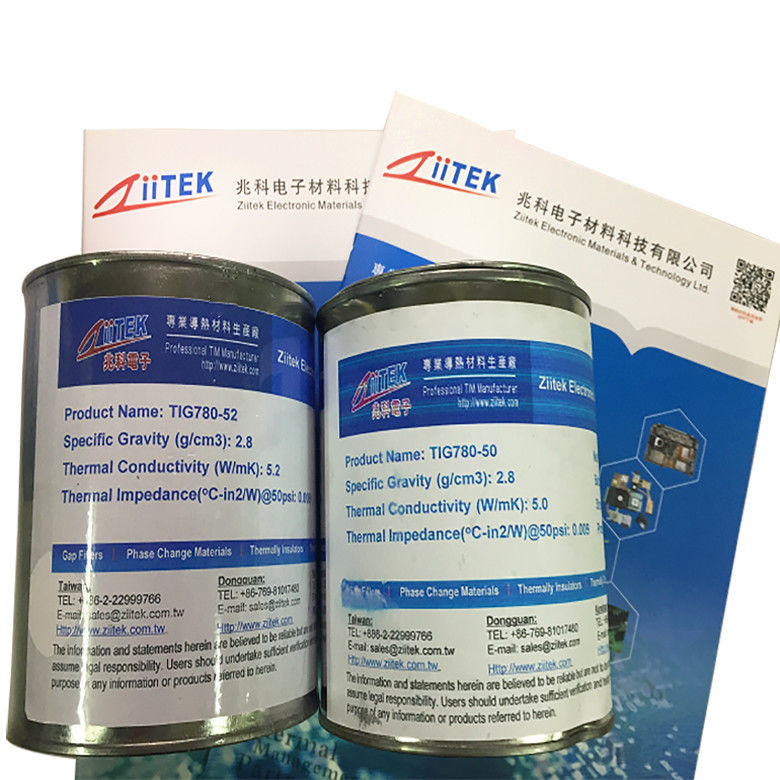

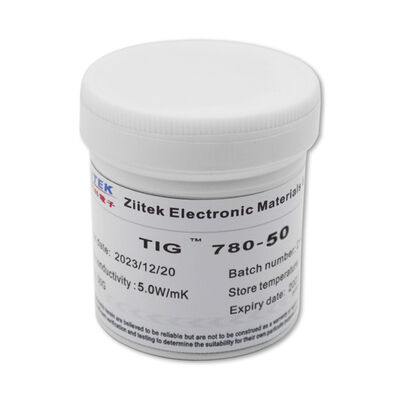

Good Performance 1kg CPU PCB Thermal Conductive Silicone Grease for Electronic Component Gap Filling
TIG™780-50 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issues.

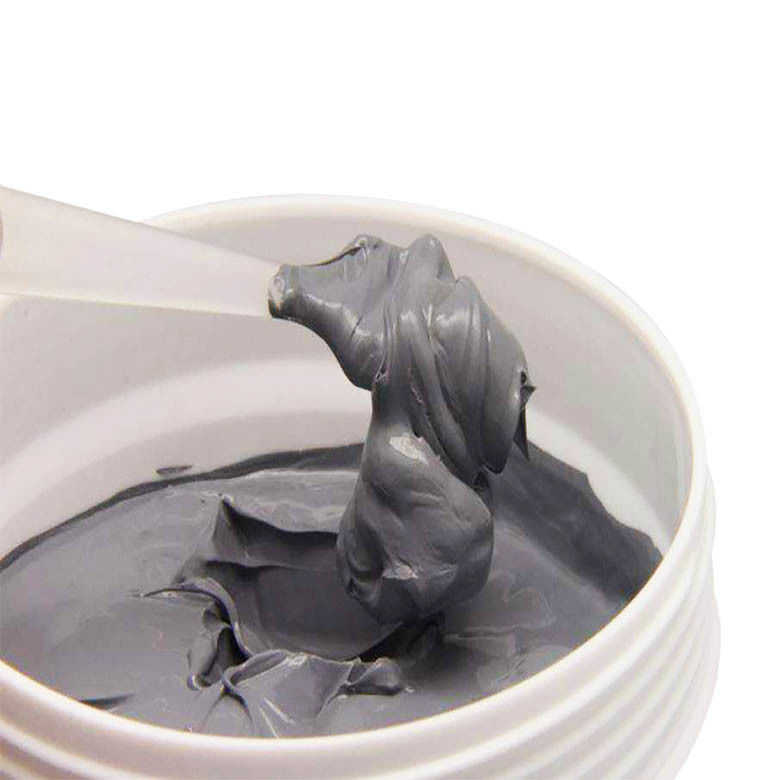

TIG™780-50 is a heat conducting product in the shape of paste. They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance.Consequently, the heat dissipation efficiency is far superior to that offered by others.
TIG780-50 Series Datasheet-(E)-REV01.pdf
Features
> Low thermal impedance
> Non-toxic and environmentally safe
Applications
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
| Typical Properties of TIG™780-50 Series | ||
| ProductName | TIG™780-50 | Test Method |
| Color | Gray | Visual |
| Construction & Compostion | Heat conduction filler / silicone oil | Ziitek Test Method |
| Specific Gravity(g/cm³) | 2.3 | ASTM D297 |
| Thermal line thickness(mm) | 0.031 | ASTM D374 |
| Thermal Conductivity | 5.0W/mK | ASTM D5470 |
| Thermal lmpedance(℃.in²/W) @10psi | 0.023 | ASTM D5470 |
| Thermal lmpedance(℃.in²/W) @50psi | 0.018 | ASTM D5470 |
| Continuous Use Temp (℃) | -45~200℃ | Ziitek Test Method |
| Viscosity(mPa.s) | 200000 | GB/T 10247 |
Package:
Packing specification 0.5kg,1kg,2kg; For other specifications, please contact us.
Storage:
Store from 5° C to 25°C with a maximum humidity of 70%.Do not store in freezer or refrigerator below 0° C.Safe disposal method does not require special protection.The storage condition is low temperature and dry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
