Name: 8W/MK Silicon Thermal Pad Gap Filling Soft and Compressible for Low Stress in -45 To 200 C Environment
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF700HQ Series
Price: 4.10 USD
Availability: InStock

Home Products Heat Sink Thermal Pad

8W/MK Silicon Thermal Pad Gap Filling Soft and Compressible for Low Stress in -45 To 200 C Environment

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF700HQ Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	8W/MK Silicon Thermal Pad Gap Filling	Keyword:	Thermal Pad
Hardness(thickness≥1.0mm）:	45±5 Shore 00	Hardness(thickness＜1.0mm）:	55±5 Shore 00
Thermal Conductivity:	8.0 W/mK	Feature:	Soft And Compressible For Low Stress
Using Temp:	– 45 To 200 ℃	Flame Rating:	94-V0
Highlight:	Compressible Thermal Pad , 8W/MK Thermal Pad , Low Stress Thermal Pad

8W/MK Silicon Thermal Pad Gap Filling

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

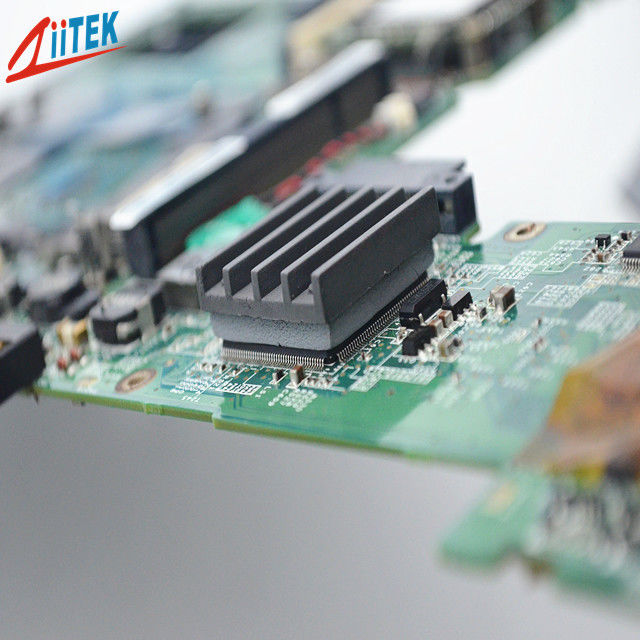

The TIF™700HQ Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

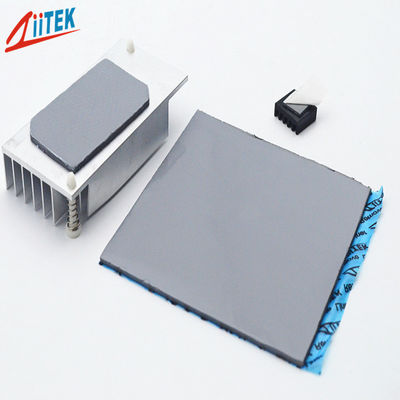

8W/MK Silicon Thermal Pad Gap Filling Soft and Compressible for Low Stress in -45 To 200 C Environment 0

Features

> Good thermal conductivity
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications

> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices

Typical Properties of TIF700HQ Series
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer	******
Thickness	0.020"(0.5mm)~0.200"(5.0MM)	ASTM D374
Specific Gravity	3.5g/cc	ASTM D792
Hardness	45 Shore 00	ASTM 2240
Continuos Use Temp	-45 to 200℃	*****
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149
Dielectric Constant	5.0 MHz	ASTM D150
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	UL E331100
Thermal conductivity	8.0W/m-K	ASTM D5470

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charg.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
