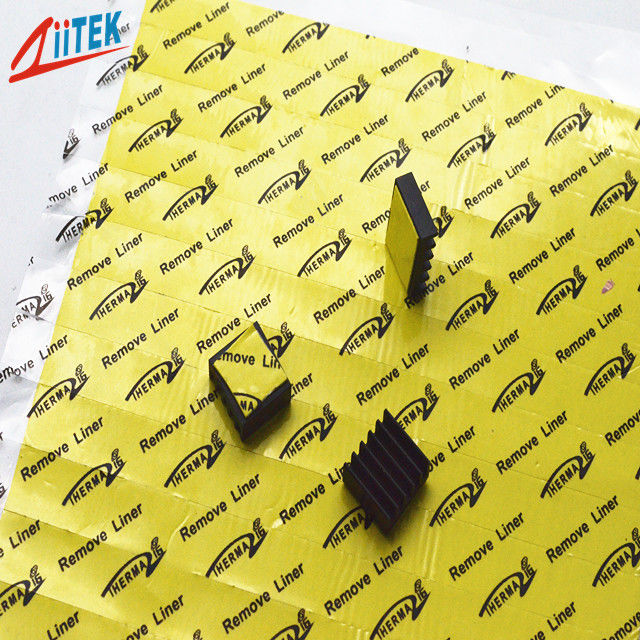

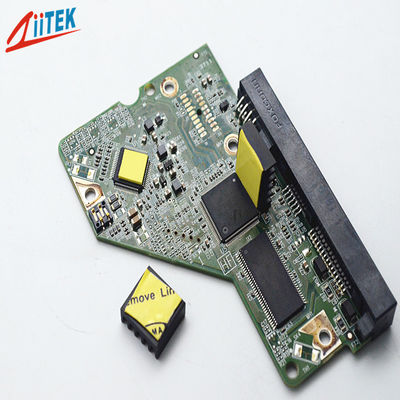

High Compressibility Thermal Pad Ideal Material Cut Into Any Shape Thermal Pad For Medical Devices

High Compressibility Thermal Pad Ideal Material Cut Into Any Shape Thermal Pad For Medical Devices

High Compressibility Thermal Pad Ideal Material Cut Into Any Shape Thermal Pad For Medical Devices
video
High Compressibility Thermal Pad Ideal Material Cut Into Any Shape Thermal Pad For Medical Devices
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF400 Series
Document: TIF400_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: High Compressibility Thermal Pad Ideal Material Cut Into Any Shape Thermal Pad For Medical Devices Thickness Range: 0.25mm~5.0mm(0.010"~0.200")
Density: 2.5g/cm³ Breakdown Strength(V/mm): ≥5500
Thermal Conductivity: 2.0W/mK Color: Yellow
Construction: Ceramic Filled Silicone Elastomer Recommended Operating Temperature (℃）: -40~200℃
Keywords: High Compressibility Thermal Pad Application: Medical Devices
Highlight:

Non-Toxic Thermal Pad

,

Ideal Material Thermal Pad

,

Medical Devices Thermal Pad

High Compressibility Thermal Pad Ideal Material Cut Into Any Shape Thermal Pad For Medical Devices
Product Overview

TIF ®400 Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

TIF 400 Series Thermal Pad Product Image
Key Features
  • Good thermal conductivity: 2.0 W/mK
  • Available in various thicknesses
  • UL recognized
  • Broad range of hardnesses available
  • High tack surface reduces contact resistance
  • Electrically isolating
Applications
  • Rainproof LED Power
  • Display card
  • Mainboard/mother board
  • Notebook
  • Power supply
  • Heat pipe thermal solutions
  • Memory Modules
  • Medical Devices
Technical Specifications
Property Value Test Method
Color Yellow Visual
Construction Ceramic filled silicone elastomer -
Thickness range (inch/mm) 0.010"~0.020" (0.25~0.50mm)
0.030"~0.200" (0.75~5.00mm)		 ASTM D374
Hardness (Shore 00) 65 | 45 ASTM 2240
Density (g/cm³) 2.5 ASTM D792
Recommended Operating Temperature (℃) -40-200℃ -
Breakdown Strength (V/mm) ≥5500 ASTM D149
Dielectric Constant @1MHz 5.0 ASTM D150
Volume Resistivity (Ohm-cm) ＞1.0×10¹² ASTM D257
Thermal conductivity (W/m-K) 2.0 ASTM D5470 / ISO22007
Flame Rating V-0 UL94 (E331100)
Product Specifications

Standard Thickness: 0.010" (0.25 mm) – 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm×406 mm)

Component Codes
  • Reinforcement Fabric: FG (Fiberglass)
  • Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
  • Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Thermal Pad Packaging and Application
Packaging & Lead Time

Packaging Details:

  • PET film or foam for protection
  • Paper card to separate each layer
  • Export carton inside and outside
  • Customized packaging available to meet customer requirements

Lead Time:

Quantity: 5000 pieces

Estimated Time: To be negotiated

Company Profile

Ziitek, founded in 2006, is a high-tech enterprise focusing on independent research and development, production and sales, and is committed to providing customers around the world with products and overall solutions for heat conduction, heating, sealing and EMI. The company is headquartered in Dongguan, Guangdong Province, and has production bases in Kunshan, Taiwan Province and Viet Nam, Jiangsu Province. The global production capacity layout ensures rapid response and efficient delivery.

With the R&D team composed of senior engineers, Zhaoke is based on independent innovation and continues to develop cutting-edge products that meet the needs of new energy vehicles, energy storage systems, AI servers, 5G communications, aerospace and other fields, with the goal of becoming a trusted strategic partner of customers.

Certifications
  • ISO9001:2015
  • ISO14001:2004
  • IATF16949:2016
  • IECQ QC 080000:2017
  • UL

Independent R&D team

Ordering Information
Q: How do I place an order?

A:

  1. Click the "Sent messages" button to continue with the process
  2. Fill out the message form by entering a subject line, and message to us. This message should include any questions you might have about the products as well as your purchase requests
  3. Click the "Send" button when you are finished to complete the process and send your message to us
  4. We will reply you as soon as possible with Email or online
