3.0W Thermal Gap Filler Insulation Sheet for LED CPU GPU MOS with Flam Rating 94 V-0 from Customized

3.0W High Quality Factory Customized Thermal Pad Thermal Gap Filler Insulation Sheet Silicone Pad For LED CPU GPU MOS

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

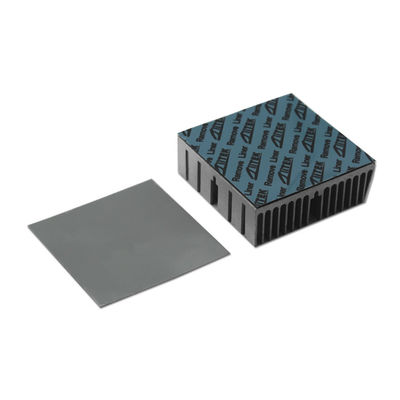

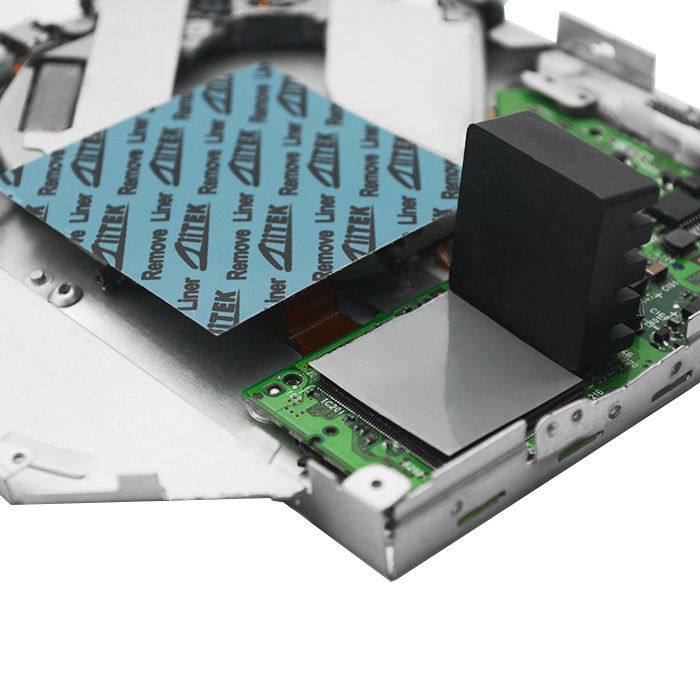

TIF^TM300 Series thermally conductive interface materials are applied to fill theair gaps between the heating elements and the heat dissipation fins or the metalbase.Their flexibility and elasticity make them suited to coat very unevensurfaces.Heat can transmit to the metal housing or dissipation plate from theheating elements or even the entire PCB, which effecitly enhances the efficiencyand life-time of the heat-generating electronic components.

Features:
> Excellent thermal conductivity 3.0W/mK

> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available

Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card



Product Specification
Product Thicknesses: 0.02"(0.50mm)-0.200"(5.00mm)

Product Sizes:8" x 16"(203mm x406mm)



Additional model code instructions:
FG: Fiberglass reinforcement

A1/A2: Singleldouble sided with Adhesive



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.
