High-Voltage Silicone Thermal Pad 3.0W/mK for Electronics Cooling

High-Voltage Silicone Thermal Pad Insulation Material Heat Conduction Sheet For Efficient Heat Transfer

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM, LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL

TIF ®100-30-11S Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

• Excellent thermal conductivity 3.0W/mK
• Naturally tacky needing no further adhesive coating
• High compliance adapts to various pressure application environments
• Available in different thickness options

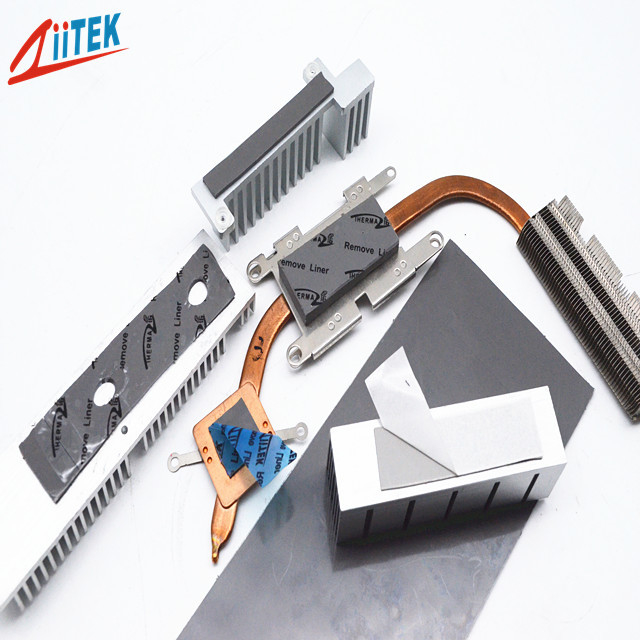

• Cooling components to the chassis of frame
• Heat dissipation structure for radiators
• Telecommunication equipment
• Automotive electronics
• Battery packs for electric vehicles
• LED TV and lamps

Standard Thickness: 0.02"(0.50 mm)-0.20" (5.00 mm) with increments of 0.01" (0.25 mm).

Standard Size: 16"X16" (406 mmX406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

The packaging of thermal pad:

• with PET film or foam-for protection
• use Paper Card To Separate Each Layer
• export carton inside and outside
• meet with customers' requirement-customized

Lead Time: Quantity(Pieces):5000
Est. Time(days): To be negotiated.

• Our value message is "Do it right the First time, total quality control"
• Our core competencies is thermal conductive interface materials
• Competitive advantage products
• Confidentiality agreement Business Secret Contract
• Free sample offer
• Quality assurance contract

A: We are manufacturer in China.

A: 1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

A: All the data in the sheet are actual tested. Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
