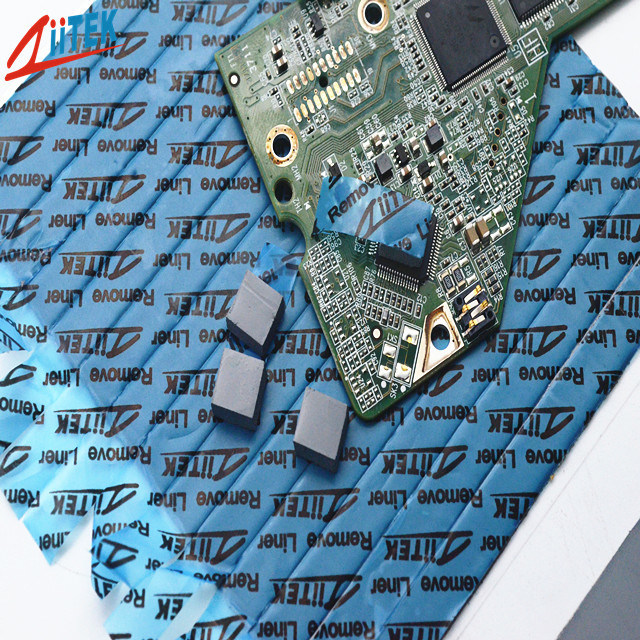

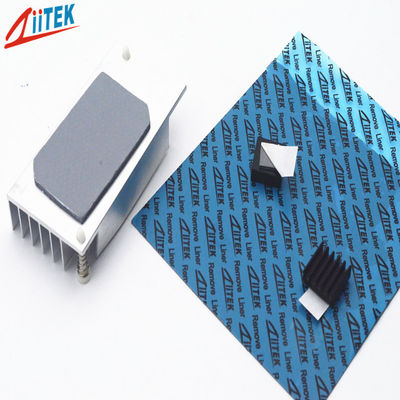

Name: RoHS Compliant 1.5W/M.K Cooling Gap Filler Insulation Silicone pad Thermal Pad For New Energy Vehicle
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-10S
Price: 4.10 USD
Availability: InStock

Home Products Heat Sink Thermal Pad

RoHS Compliant 1.5W/M.K Cooling Gap Filler Insulation Silicone pad Thermal Pad For New Energy Vehicle

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF100-10S

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	RoHS Compliant 1.5W/M.K Cooling Gap Filler Insulation Silicone Pad Thermal Pad For New Energy Vehicle	Keywords:	Silicone Thermal Pad
Sample:	Sample Free	Fire Rating:	94 V0
Color:	Gray	Thermal Conductivity:	1.5W/m-K
Dielectric Constant:	4.5MHz	Dielectric Breakdown Voltage:	>5500 VAC
Thickness Range:	0.010"~0.200"(0.25mm~5.0mm)	Application:	New Energy Vehicle
Highlight:	RoHS compliant thermal pad , high conductive silicone rubber pad , new energy vehicle cooling pad

RoHS Compliant 1.5W/M.K Cooling Gap Filler Insulation Silicone pad Thermal Pad For New Energy Vehicle

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Ziitek TIF^®100-10S Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Features

> Good thermal conductive: 1.5W/mK
> Fiberglass reinforced for puncture, shear and tear resistance
> Easy release construction
> Electrically isolating
> High durability

Applications

> Computer / communication equipment.
> Laptop / tablet / PC server.
> New energy power battery / vehicle equipment.
> Switching power supply / UPS.
> Video / security equipment.
> Any heating element and radiator.

Typical Properties of TIF^®100-10S Series
Property	Value		Test method
Color	Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.1		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	45 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥ 5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal Conductivity (W/m-K)	1.5		ASTM D5470
	1.5		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications
Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

RoHS Compliant 1.5W/M.K Cooling Gap Filler Insulation Silicone pad Thermal Pad For New Energy Vehicle 0

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: What thermal conductivity test method was used to achieve the values given on the data sheets?

A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.

Q: Is GAP PAD offered with an adhesive?

A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.

RoHS Compliant 1.5W/M.K Cooling Gap Filler Insulation Silicone pad Thermal Pad For New Energy Vehicle 1

Tag:

thermal interface material pad,

thermal heat transfer pads,

thermal laptop cooling pad

Contact Details

Dongguan Ziitek Electronical Material and Technology Ltd.

Contact Person: Dana Dai

Tel: +86 18153789196
