| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL & RoHS |
| Model Number: | TIF700M |
| Document: | TIF700M_Data Sheet.pdf |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 24*13*12cm cartons |
| Delivery Time: | 3-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/month |

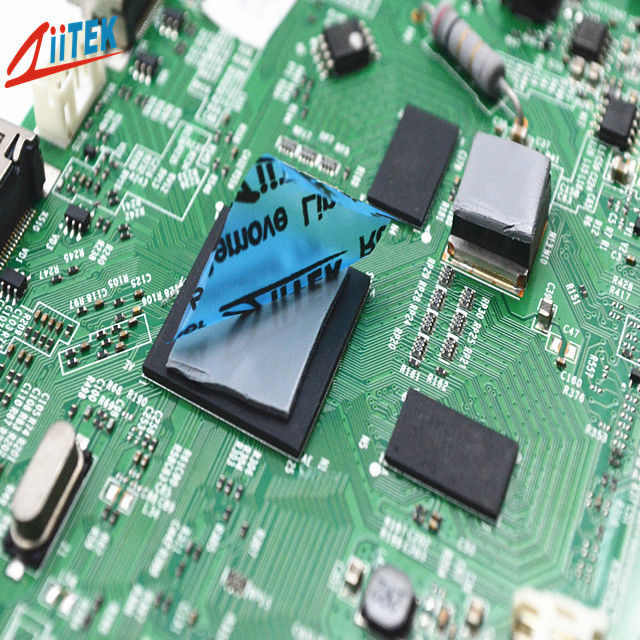

| Products Name: | Ultra Soft Termal Pad Manufacturer High Temperature Silicon Thermal Pad For AI Servers AI Processors | Construction: | Ceramic Filled Silicone Elastomer |
|---|---|---|---|
| Thickness Range: | 0.25-5.0mmT | Keywords: | Thermal Pad |
| Dielectric Constant @1MHz: | 7.0 | Color: | Gray |
| Breakdown Strength(V/mm)): | ≥5500 | Fire Rating: | UL94 V-0 |
| Application: | AI Servers AI Processors | Thermal Conductivity: | 6.0W/m-K |
| Highlight: | high temperature silicone thermal pad,AI server thermal pad,ultra soft thermal pad |
||
The TIF®700M Series is a well-balanced, general-purpose thermal pad offering excellent thermal conductivity and moderate hardness. This balanced design provides both good surface conformity and excellent ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance. Standard Thickness: 0.010″ (0.25 mm) – 0.200″ (5.00 mm) with increments of 0.01″ (0.25 mm). Standard Size: 16″ × 16″ (406 mm × 406 mm). The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us. Lead Time: Quantity (Pieces): 5000 — Estimated Time (days): To be negotiated. Ziitek is a high-tech enterprise dedicated to the R&D, manufacture, and sales of thermal interface materials (TIMs). We have rich experience in this field and can support you with the latest, most effective, and one-step thermal management solutions. We operate many advanced production equipments, full test equipments, and fully automatic coating production lines that support the production of high-performance thermal silicone pads, thermal graphite sheets/films, thermal double-sided tapes, thermal insulation pads, thermal ceramic pads, phase change materials, thermal grease, and more. Our products are UL94 V-0, SGS, and RoHS compliant.Property Value Test Method Color Gray Visual Composition Ceramic filled silicone elastomer ZKTM J024 Density (g/cm³) 3.4 ASTM D792 Thickness Range (inch/mm) 0.010–0.020 (0.25–0.50) / 0.030–0.200 (0.75–5.00) ASTM D374 Hardness (Shore OO) 60 / 50 ASTM 2240 Recommended Operating Temperature -40 to 200°C — Breakdown Strength (Vac/mm) ≥5500 ASTM D149 Dielectric Constant @1MHz 7.0 ASTM D150 Volume Resistivity (Ohm-meter) >1.0×1012 ASTM D257 Flame Rating V-0 UL 94 (E331100) Thermal Conductivity (W/m-K) 6.0 ASTM D5470 Thermal Conductivity (W/m-K) 6.0 ISO 22007 ![]()
